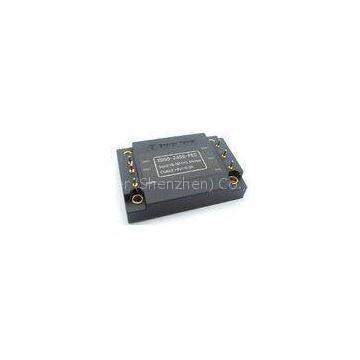

1836 V High Input Voltage dc dc Converter 50 Watt Output 8V XD50-24S8-PEC
- T/T L/C D/P D/A
- 7 days
You May Like
-
50w Dc-dc Converters Output 15V With Hiccup Mode Short Circuit Protection XD50-24S15-POC
-
High Voltage DC-DC Converters 50W Output 25V XD50-24S28-POCW
-
Wide Input Range 20 - 60V DC-DC Converters 40W Output 5V 2.5A XD40-24S5-POCW
-
Industrial High Input Voltage 48v to 5v Dc-dc Converter XD50-48S5-POC
-
Isolation Low Voltage dc to dc Converter 5v Output XD50-24S5-PEC
-
Load Regulation DC-DC Converters Module 50W Output 6V XD50-24S6-POC
Product Details
| Brand Name | Enargy | Place of Origin | China | |
| Model Number | XD50-24S8-PEC |
Product Description
DC-DC Converters 50W Output 8V XD50-24S8-PEC
Features:
Wide input range: 18‐36 V
Output power: 50W
High conversion efficiency: 89%
Line regulation to:±1%
Load regulation to:±1%
Input under‐voltage lock‐out
Output voltage trim±‐8～+10% Vout
Output over‐current protection
Hiccup mode short circuit protection
Output over‐voltage protection
Enable (On/Off) Control
Isolation Voltage(Input to output): 1500Vdc
Product Overview:
These DC‐DC converter modules use advanced power
processing, control and packaging technologies to
provide the performance, flexibility, reliability and cost
effectiveness of a mature power component. High
frequency Active Clamp switching provides high power
density with low noise and high efficiency.
1. Electric Characteristics
1.1 Absolute Maximum Ratings
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Input Voltage |
40 |
Vdc |
Continuous, non-operating |
||
|
36 |
Vdc |
Continuous, operating |
|||
|
40 |
Vdc |
Impulse voltage,<100ms,operating |
|||
|
Isolation voltage |
2000 |
Vdc |
Input to output |
||
|
Operating Temperature |
-40 |
100 |
℃ |
In view of PCB Temperature |
|
|
Storage Temperature |
-55 |
105 |
℃ |
||
|
Enable to -Vin Voltage |
-2 |
10 |
Vdc |
1.2 Input Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Operating input voltage range |
18 |
24 |
36 |
Vdc |
|
|
Input Under-Voltage Lockout |
17.0 |
17.5 |
17.9 |
Vdc |
Recovery point |
|
16 |
16.5 |
17.0 |
Vdc |
Protect point |
|
|
Maximum Input Current |
3.4 |
A |
Vin min,output full load |
||
|
Efficiency |
88 |
% |
Rated input;rated load |
||
|
Dissipation,Standby |
5 |
W |
No load |
1.3 Output Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Output Voltage Set point |
7.92 |
8.00 |
8.08 |
Vdc |
Rated input voltage, load |
|
Output Voltage Range |
7.84 |
8.00 |
8.16 |
Vdc |
|
|
Output Current Range |
0.1 |
6.3 |
A |
||
|
Voltage Regulation |
± |
