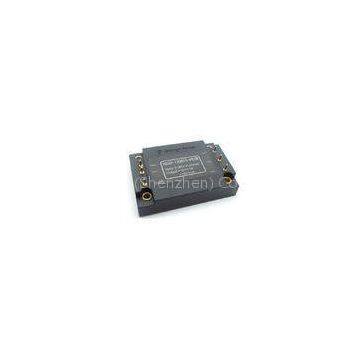

Reliability Military Power Supply dc dc Converter 30W Output 15 Volt XD30-12DB15-PECW
Negotiable
/ Piece
1 Piece(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Isolated Dc-dc Converters 5W Output 12V / 24V Input MT5-12S12-PECW
-
Custom Military Power Supply With Over Current Protection MT13-12S5-POC
-
IP22 Medical Power Adaptor , AC-DC Power Adapter With CE ROHS Approval
-
High Efficiency Railway Power Supply Dc-dc Converter Module Isolation JS150-24S12-POC
-
Isolation Capacitance Military Power Supplies Output 25 Volt ZG800-220S25-PEC
-
MIL-STD-704 1500V Isolated DC DC Converter 150W Output 24V YN150-24S24-PEC
Product Details
| Brand Name | Enargy | Place of Origin | China | |
| Model Number | XD30-12DB15-PECW |
Product Description
DC-DC Converters 30W Output 15V XD30-12DB15-PECW
Features:
Wide input range: 9-36 V
Output power: 30W
High conversion efficiency: 90%
Line regulation to: ±1%
Load regulation to: ±1%
Input under-voltage lock-out
Output over-current protection
Hiccup mode short circuit protection
Output over-voltage protection
Enable (On/Off) Control
Isolation Voltage: 1500Vdc
Product Overview:
These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High
frequency Active Clamp switching provides high power density with low noise and high efficiency.
Electric Characteristics
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | ? | ? | 80 | Vdc | Continuous, non-operating |
| ? | ? | 40 | Vdc | Continuous, operating | |
| ? | ? | 80 | Vdc | Impulse voltage,<100ms,operating | |
| Isolation voltage | ? | ? | 2000 | Vdc | Input to output |
| Operating Temperature | -55 | ? | 100 | ℃ | In view of PCB Temperature |
| Storage Temperature | -65 | ? | 115 | ℃ | ? |
| Enable to -Vin Voltage | -2 | ? | 10 | Vdc | ? |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Operating input voltage range | 9 | 28 | 36 | Vdc | ? |
| Start voltage range | 10 | 28 | 36 | Vdc | ? |
| Input Under-Voltage Lockout | ? | 8.5 | 8.9 | Vdc | Recovery point |
| 7.5 | 8.0 | ? | Vdc | Protect point | |
| Maximum Input Current | ? | ? | 4.2 | A | Vin min,output full load |
| Efficiency | ? | 89 | ? | % | Rated input;rated load |
| Dissipation,Standby | ? | ? | ? | W | No load |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes | |
| Output Voltage Set point | +14.85 | +15.00 | +15.15 | Vdc | +Vout | Rated input voltage;Small load |
| -14.50 | -15.00 | -15.50 | Vdc | -Vout | ? | |
| Output Voltage Range | +14.80 | +15.00 | +15.20 | Vdc | +Vout | ? |
| -14.40 | -15.00 | -15.60 | Vdc | -Vout | ? | |
| Output Current Range | 0.2 | ? | 1.0 | A | +Vout | ? |
| 0.2 | ? | 1.0 | A | -Vout | ? | |
| Voltage Regulation | ? | ? | ±1 | % | +Vout | ? |
| ? | ? | ±4 | % | -Vout | ? | |
| Load Regulation | ? | ? | ±1 | % | +Vout | ? |
| ? | ? | ±4 | % | -Vout | ? | |
|
Output over-current protection |
? | 1.2 | ? | A | +Vout | 90% of the rated output voltage |
| ? | 1.2 | ? | A | -Vout | ? | |
| Output Short Circui Current | 0 | ? | 5.0 | A | +Vout | ? |
| 0 | ? | 5.0 | A | -Vout | ? | |
| RMS | ? | 15 | ? | mV |
