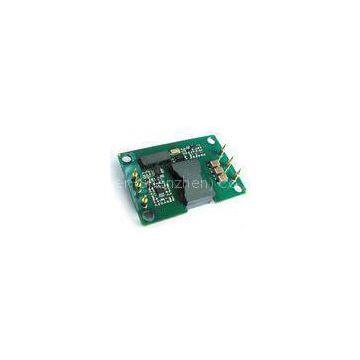

50w Dc-dc Converters Output 15V With Hiccup Mode Short Circuit Protection XD50-24S15-POC
- T/T L/C D/P D/A
- 7 days
You May Like
-
High Voltage DC-DC Converters 50W Output 25V XD50-24S28-POCW
-
Wide Input Range 20 - 60V DC-DC Converters 40W Output 5V 2.5A XD40-24S5-POCW
-
Industrial High Input Voltage 48v to 5v Dc-dc Converter XD50-48S5-POC
-
Isolation Low Voltage dc to dc Converter 5v Output XD50-24S5-PEC
-
Load Regulation DC-DC Converters Module 50W Output 6V XD50-24S6-POC
-
Safety Medical Power Adapter 45W Single Current Output 19V dc / 2.3A MDA60-220S19
Product Details
| Brand Name | Enargy | Place of Origin | China | |
| Model Number | XD50-24S15-POC |
Product Description
DC-DC Converters 50W Output 15V XD50-24S15-POC
Key Features
Output power: 50W
Wide input range: 18-36Vdc
High conversion efficiency: Up to 91%
Line regulation to ±1%
Load regulation to ±1%
Fixed operating frequency
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-voltage protection
Output over-load protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±10% Vout
Product Overview
These DC-DC converter modules use advanced power
processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness
of a mature power component. High frequency Active Clamp
switching provides high power density with low noise and
high efficiency
1. Electric Characteristics
·Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,
unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data
testing at Ta=25oC except especial definition.
1.1 Absolute maximum ratings1. Electric Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Input Voltage |
40 |
Vdc |
Continuous, non-operating |
||
|
36 |
Vdc |
Continuous, operating |
|||
|
40 |
Vdc |
Operating transient protection,<100mS |
|||
|
Isolation voltage |
2000 |
Vdc |
Input to output |
||
|
Operating Temperature |
-55 |
100 |
℃ |
||
|
Storage Temperature |
-65 |
125 |
℃ |
||
|
Enable to -Vin Voltage |
-2 |
10 |
Vdc |
1.2 Input Characteristics
|
Parameter |
Min |
Typ |
Max |
Units |
Notes |
|
Operating input voltage range |
18 |
24 |
36 |
Vdc |
Continuous |
|
Under-Voltage Lockout |
17.0 |
17.5 |
17.9 |
Vdc |
Turn - On Threshold |
|
16 |
16.5 |
17.0 |
Vdc |
Turn - Off Threshold |
|
|
Maximum Input Current |
3.4 |
A |
Full load;18Vdc Input |
||
|
Efficiency |
90 |
% |
Full load, rating input voltage Figures 1-4 |
||
|
Dissipation,Standby |
2.0 |
3.5 |
W |
Min. Load |
|
|
Disabled Input Current |
5 |
mA |
Enable pin low |
||
|
Recommend External Input Capacitance |
100 |
uF |
Typical ESR 0.1-0.2W |
1.3 Output Characteristics
|
Parameter |
M |
