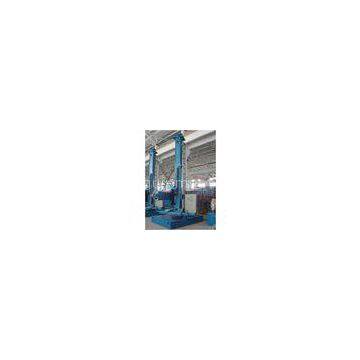

Heavy Type Criss Welding Vessel Machine Of Motor Drive Weld Manipulators
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Vessel Welding Manipulator With Light / Medium Heavy Industrial Manipulator
-
Automated Welding Manipulator Vessel Machine Of Remote Control , High Efficiency
-
WM3040 Welding Column and Boom Machine With Motor Drive Weld Manipulators
-
Medium Heavy Electric Weld Manipulators Of Automatic Arc Welding Machine
-
Electric Column And Boom Welding Manipulator Operation Machine For Vessel
-
Custom Advanced 5T Roller Automatic Hardfacing Machine Welding Machines Manufacturers
Product Details
| Brand Name | Yijie | Place of Origin | China | |
| Model Number | WM |
Product Description
Certification:CE
Heavy Type Criss Welding Vessel Machine Of Motor Drive Weld Manipulators
For?all?arc?welding?processes,?it?is?important?that?the?welding?head?be?rigidly
mounted?over?the?part?to?be?welded?to?obtain?the?highest?quality?weld?results.?Any?vibration?or?instability?of?the?
weld?head?mounting?will?have?an?effect?upon?the?arc?length?and?produce?inferior?results.?Welding?manipulator?
is?used?when?the?weld?head?has?to?be?moved?to?a?position?relative?to?the?work?piece.?Welding?manipulator?
provide?the?perfect?solution?as?the?boom?can?be?lifted?and?lowered?on?the?column?and?can?be?extended?or?
retracted?as?required,?The?ends?of?boom?are?machined?to?carry?a?welding?head.
This?machine?and?welder?composed?of?auto?welding?mechanical?equipment.?It?can?use?with?welding?rotator,?
widely?applied?to?industries?such?as?boiler,?pressure?vessel,?petroleum,?chemical?industry?and?mechanism.
Product Application:
Welding manipulator is a special machine, which can weld the vessels, steel structure in all orientation by various welding methods such as circumferential and long itudinal welding line.
Product Advantage:
Convenient, high efficiency
high quality
Reasonable price
good service
Specification:
|
Type
|
Horizontal Retracting mm
|
Vertical Lifting mm
|
Column Rotation
|
Trolley Moving
|
Retracting Speed M/min
|
|
WM2020
|
2000
|
2000
|
By hand
|
By hand
|
0.12-1.2
|
|
WM3030
|
3000
|
3000
|
Motor
|
Motor
|
|
|
WM4040
|
4000
|
4000
|
Motor
|
Motor
|
|
|
WM5050
|
5000
|
5000
|
Motor
|
Motor
|
|
|
WM6060
|
6000
|
6000
|
Motor
|
Motor
|
|
|
WM7070
|
7000
|
7000
|
Motor
|
Motor
|
|
|
WM8080
|
8000
|
8000
|
Motor
|
Motor
|
|
|
Remote control box line length:12m
Cross fine-tuning:Manual or electric
|
