Home > Products > Hardfacing Machine > Automatic Magnetic Hardfacing Machine In Beam Steel Roller 10T Millstone Type
Automatic Magnetic Hardfacing Machine In Beam Steel Roller 10T Millstone Type
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Customized 20T Roller Automatic Hardfacing Machine For Beam Steel Roller
-
50T Automatic Roller Hardfacing Machine Of Remote Control Used In Color Metals Roller
-
Red Rotary Welding Positioner 1000KG With Head And Tail Stock Lifting
-
Horizontal Adjustment Tank Turning Rotator For Construction Of Steel Vessel
-
Conventional Cylindrical 20T Self-aligned Welding Rotator Pipe Welding Rollers
-
WR300 Pressure Vessel Welding Turning Rolls for the ship boiler , VFD Control Turning Roller
Product Details
| Brand Name | Yijie | Place of Origin | China | |
| Model Number | RSW Hardfacing machine |
Product Description
Certification:CE / ISO

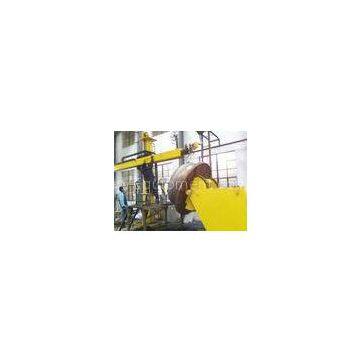

Automatic Magnetic Hardfacing Machine In Beam Steel Roller 10T Millstone Type
Automatic hardfacing machine of our advanced technology in extended wear life equipments, widely used in each kind of hot roller, beam steel roller, color metals roller, and grind coal roller, etc various works pieces to prepare to protect and repair the work; We can customize various different specifications according to customer’s need.
Main advantages:
1. Realizing hardfacing process and heat preservation process synchronously, guaranteeing digital control between the surfacing layer temperatures in the process of hardfacing.
2. Realizing welding of automatic recovery and avoiding the dust pollution, improving the working environment.
3. Wire stability, wire torque in process of surfacing, which can realize high speed surfacing and swinging overlays, increased melting and depth of molten pool apply efficiency.
4. Strengthen the arc of molten pool of electromagnetic and mechanical agitation role in the process of the swinging hardfacing, making the weld microstructure becomes more reasonable and uniform.
5. It can achieve automation control for all the welding process parameters including the current, voltage, wire feeding speed, walk line speed, walk line distance, weld bead width, weld bead pendulum wide, welding time, etc.
Roll surfacing welding machine is a special kind of welding equipment; it is combined by head and tail welding positioner, submerged arc welding power, wheel frame etc. Welding machines’ basic classifications are according to the size of the loading, also with reference to length of the workpiece, and the workpiece parameters.
Product Application:
widely used in each kind of hot roller, beam steel roller, color metals roller, and grind coal roller, etc various works pieces to prepare to protect and repair the work.
Product Advantage:
Combo unitized hardfacing and machining
high quality
Reasonable price
good service
Specification:
Type | Max Loading Kg | Chuck type mm | Revolve? speed rpm | Revolving? Power KW | Horizontal Speed mm/min | Unit Length? m |
RSW5 | 5000 | 500 | 0—1.2 | 2.2 | 0-30 | 3000 |
RSW10 | 10000 | 500 | 4 | 5000 |
||
RSW20 | 20000 | 800 | 7.5 | 6000 |
||
RSW50 | 50000 | 800 | 11 | 8000 |
||
Remote control box line length:10m The speed adjustment way:Rotary, transverse walk variable frequency speed regulation |
