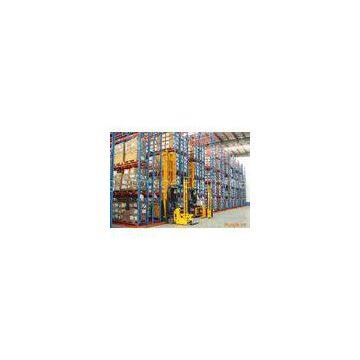

Automatic Steel Double Deep VNA Racking System With 3.9m Box-shape Beam

Classification:

Heavy duty Very Narrow Aisle(VNA) Pallet Racking

Use:

Warehouse storage rack

Supermarket store

Industrial storage

cold storage applications

Features:

● Great cubic utilization

● 100% accessibility to individual pallets

● Improved speed of access and retrieval

● Mechanical Handling Equipment

● Specialist high cost machine-requires good floor surface.

● Operates within guide rails or wire induction guidance system which operates to the height of about 12m

● Good stock rotation

● Good order picking, 100% selectivity

● Fast picking rate

● Good product protection

● Average floor area utilization

● 50% net pallet area ㎡ usage of overall warehouse area (based on the above diagrammatic illustration)

Structure:

Dismountable structure

Benefits

Loading capacity:

1000-3000 Kg per level

Quality:

Strong and stable

Size:

Customized size

Materials:

High quality steel Q235

Material thickness:

1.5-2.5mm

Upright:

Omega Section

Pitch holes:

pitch 75mm square hole with good safety

Beams:

Box-shape beams or reinforced box-typed beam

Levels:

3~10 levels, customized

Welding:

Good neat welding

Safety Pin:

L shape locking pins

Colors:

Standard Blue & Orange or customized

HS Code

73089000

● Maximum Height(Upright/Pillar):

2,000mm - 12,000 mm?

● Max Width/Length(Beam):

Up to 3,900 ,,m?

● Max Depth(Upright frame):

Up to 1,500 mm

● Max Weight:

1000kg - 3000 kg / layer?

● Mobility:

The height of each beam c
