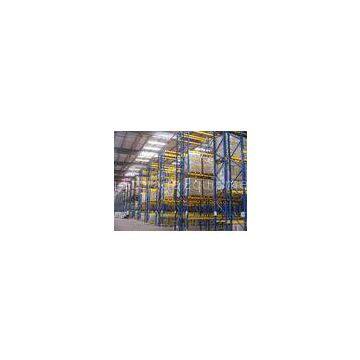

Vertical Heavy Duty Selective Pallet Racking Safety For Industrial

Brand Name	Weitelong		Place of Origin	China
Model Number	WTL-SPR-010

Delivery Time:20 to 30 days
Certification:ISO9001:2008

Vertical Heavy Duty Selective Pallet Racking Safety For Industrial

Quick Detail:

????? Adjustable Selective Pallet Racking for Garments, Electonics Industry

It is the lowest cost pallet racking solution and it\'s?ideal where flexibility, access and speed of operation are the main objectives Maximum storage flexibility and versatility can be easily adjusted or relocated at any time Wide variety of accessories to accommodate special storage needs Safer, cleaner and more convenient storage

Description:

????? Adjustable Selective Pallet Racking for Garments, Electonics Industry

????? Selective pallet racking is the most common and cost effective pallet racking system in use today, providing easy accessibility to all products at all times and simple to install. Popular application in most industries requiring instant accessibility of all pallets from Fast Moving Consumer Goods (FMCG) distribution centers to general engineering or trading companies.

????? It can be designed to meet virtually any pallet size or weight and can be used in conjunction with all types of lift trucks.

????? The system is convenient for a warehouse that needs to store a wide variety of products?of varying sizes.

????? Another benefit of the?selective pallet racking system is the easy accessibility it provides using a conventional forklift. Such accessibility is important if the inventory is rapidly depleted and restocked.

????? Our Pallet Racking is specially designed for easy access and flexibility during the storage and retrieval process. Pallet Racking beams come in a variety of sizes and weight capacities. The heavy duty box shape beams have spring loaded safety pins attached to the Pallet Racking beam connectors.

Specifications:

Classification:	Heavy duty Pallet Racking
Loading capacity:	1000-3000 Kg per level
Quality:	Strong and stable
Size:	Customized size
Materials:	High quality steel Q235
Material thickness:	1.5-2.5mm
Upright:	Omega Section
Pitch holes:	pitch 75mm square hole with good safety
Beams:	Box-shape beams or reinforced box-typed beam
Levels:	2~8 levels, customized
Welding:	Good neat welding
Safety Pin:	L shape locking pins
Colors:	Standard Blue & Orange or customized
HS Code	73089000
Maximum Height(Upright/Pillar):	2000mm - 12,000 mm?
Max Width/Length(Beam):	Up to 3,900 mm?
Max Depth(Upright frame):	Up to 1,500 mm
Max Weight:	1,000kg - 3,000 kg / layer?
Mobility:	The height of each beam can be adjusted by 75mm of pitch freely.
Surface finish:	Powder coating which is characterized by surface-smoothly, antirust, anti-corrosive, non-toxic.
Color:	Blue/Orange/Gray/others

Competitive Advantage:

Maximizes space use in any warehouse configuration while retaining optimum product accessibility. the most popular and economical form as it provides 100%?selective storage can be designed to meet virtually any pallet size or weight Can be used in conjunction with all types of lift trucks high strength and durability? Powder coat galvanized finish

Remarks

A)?Specification?of?the?racking:Height*Width/Length*Depth

B)?How?many?bays?and?layers

C)?Load?capacity?of?each?layer

D)?RAL?color

E)?Warehouse?layout?if?possible(Auto?CAD?format)
