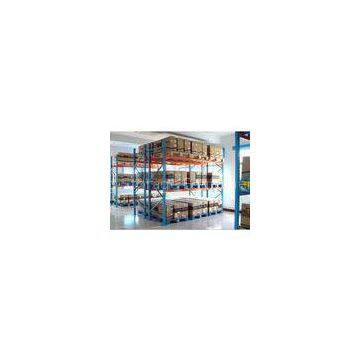

FIFO Heavy Duty Pallet Racking Detachable Goods Shelf With Box-shape Beam

Brand Name	Weitelong		Place of Origin	China
Model Number	WTL-SPR-005

Delivery Time:20 to 30 days
Certification:ISO9001:2008

FIFO Heavy Duty Pallet Racking Detachable Goods Shelf With Box-shape Beam

Quick Detail:

????? Professional manufacturer of storage pallet racking & shelving in CHINA

FIRST IN FIRST OUT can be achieved since all pallets are accessible. Selectivity: 100% of all pallets are accessible to the fork lift operator, which averages an occupancy rate of 98%. Durability: Bolted beams and cross bars reduces the possibility of accidental dislodgement of components from fork lift operators. Inventory Control: Provides the capacity required for heavy loads or high applications. Structural with stands greater abuse than a roll form rack. Works with most types of forklifts. Floor pallets can be accessed with a pallet jack or fork lift.

Description:

????? Professional manufacturer of storage pallet racking & shelving in CHINA

????? Combining vertical frames with horizontal load beams, selective pallet rack provides total accessibility to the product. It’s easily the most popular racking system in use today, providing versatility for warehouses that have a wide variety of product types. It is manufactured from high-strength steel and other quality raw materials, which are certified to meet our specifications.

????? The pallet racking is widely used in many industries such as Warehouse storage rack, Supermarket store, Industrial storage, Retail store inventory rooms, Cold storage applications and Wholesale stores.

Advantages

Each pallet can be located and moved individually without interference to other pallets Can be designed to handle virtually any pallet size or weight Accessible by any type of forklift Most cost-effective and versatile of all storage solutions Provides fast handling of products Compatible with the majority of material handling equipment and warehouse environments The strength and integrity of the system provides maximum protection for the stock that is being stored

Specifications:

Classification:	Heavy duty Pallet Racking
Loading capacity:	1000-3000 Kg per level
Quality:	Strong and stable
Size:	Customized size
Materials:	High quality steel Q235
Material thickness:	1.5-2.5mm
Upright:	Omega Section
Pitch holes:	pitch 75mm square hole with good safety
Beams:	Box-shape beams or reinforced box-typed beam
Levels:	2~8 levels, customized
Welding:	Good neat welding
Safety Pin:	L shape locking pins
Colors:	Standard Blue & Orange or customized
HS Code	73089000
Maximum Height(Upright/Pillar):	2000mm - 12,000 mm?
Max Width/Length(Beam):	Up to 3,900 mm?
Max Depth(Upright frame):	Up to 1,500 mm
Max Weight:	1,000kg - 3,000 kg / layer?
Mobility:	The height of each beam can be adjusted by 75mm of pitch freely.
Surface finish:	Powder coating which is characterized by surface-smoothly, antirust, anti-corrosive, non-toxic.
Color:	Blue/Orange/Gray/others

Competitive Advantage:

● Welding joint linkage with 4 kinds of weight supporting type, 10 kinds of depth and 22 kinds of height

● Specialized in the design and manufacture of storage equipments

● Famous buyers include NOKIA, LG, PHILIPS, SONY, etc.

● Adjustable by each pitch 75mm, smart section design and high-quality steel

● Work with fork truck, and store or take goods with pallet.

● Convenient to assemble and sui
