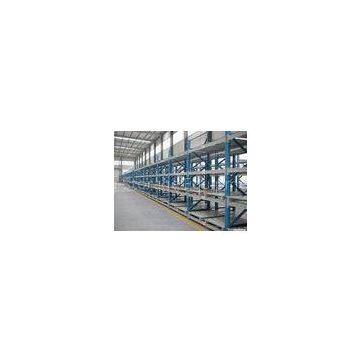

Steel Heavy Duty Pallet Racking , Selective Pallet Racking System 2 - 8 Level

Classification:

Heavy duty Pallet Racking

Use:

Warehouse storage rack

Supermarket store

Industrial storage

Retail store inventory rooms

cold storage applications

wholesale stores

Features:

● Easy assembled and dissembled structure designed

?? ● Beams can be adjusted every 75mm in unit, adapted to different height demand.

● Constructed by excellent cool rolling and coal steel element forming technology, static powder coating surface processed, enduing with antiseptic ability

● It can be connected additionally in landscape orientation and in portrait so as to increase stability and safety

Structure:

Dismountable structure

Benefits

Loading capacity:

1000-3000 Kg per level

Quality:

Strong and stable

Size:

Customized size

Materials:

High quality steel Q235

Material thickness:

1.5-2.5mm

Upright:

Omega Section

Pitch holes:

pitch 75mm square hole with good safety

Beams:

Box-shape beams or reinforced box-typed beam

Levels:

2~8 levels, customized

Welding:

Good neat welding

Safety Pin:

L shape locking pins

Colors:

Standard Blue & Orange or customized

HS Code

73089000

● Maximum Height(Upright/Pillar):

2000mm - 12,000 mm?

● Max Width/Length(Beam):

Up to 3,900 mm?

● Max Depth(Upright frame):

Up to 1,500 mm

● Max Weight:

1,000kg - 3,000 kg / layer?

● Mobility:

The height of each beam can be adjusted ?by 75mm of pitch freely.

● Surface finish:

Powder coating which is characterized by surface-smoothly, antirust,anti-corrosive, non-toxic.

● Material:

High quality steel, such as Q235B etc.

● Color:

Blue/Orange/Gray/others
