Durable Motor Carpet And Hard Floor Cleaning Machines , 150 RPM / 300 RPM Dual Speed

Durable Motor Carpet And Hard Floor Cleaning Machines , 150 RPM / 300 RPM Dual Speed

Quick Detail:

Description:

> Power: 1100 W / 1500 W

> Volt: 110/220 V, 50/60 HZ

> Working Width: 450 mm (18”)

> Working Speed: 150 RPM / 300 RPM

> Gross Weight: 38.0 KG

> Standard accessories: 18” Pad Holder, 18” Hard Brush, 18” Soft Brush & Water Tank.

> Planetary Gear Box

> To save cost by using one machine to replace several machines

> To save time by using one machine to perform floor washing, waxing, and polishing.

> To save space because there is no more worry to store several machines.

> SL-18SH 18” Dual Speed Floor Machine is a full range floor machine. The low speed turns at 150 RPM, and the high speed turns at 300 RPM. It can do all the things that our low speed floor cleaner can do, and all out high speed polisher can do as well.

How to assemble the machine? Or how to use machine?

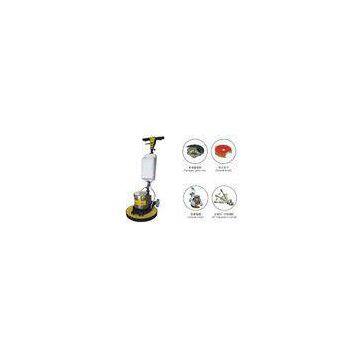

This Floor Machine is composed by handle with water tank unit,motor unit,Brush Deck and pad holder or brush.

Assembly the handle unit onto the 3 leg Chassis by using 3 pieces of M8 X 70 hexagon bolt and 6 pieces of 8mm Washer.

Push back the handle until it is level with the ground. Unscrew the Motor Plug Covers by a screwdriver and open it. Fix the Angle Plug onto the socket and screw back the Plug Covers.

Put back all the parts to the original states before disassembly.

Use 8 pieces ST4.2 X 25(M6 X50) Screw and 8 pieces 5mm(6mm) Washer to assembly the Brush Deck on to the Chassis and link up the water hose between the water tank and the Chassis.

After the Brush Deck is installed, assemble the pad holder by anti-clockwise turn and dissemble it by clockwise turn.

Assemble the other holders same way as the installation of the pad holder.

After all the assembly procedures are completed, press on the handle switch to lift the handle until it is 90o to the Chassis.

Plug the electric cord into the outlet, press the breaker, tighten the switch that both left and right on the lever, starting motor and running the machine.

Loosen the Switch Lever Handle, the machine will stop immediately.

Tip the machine onto the wheels and pull lever to move the machine.

Applications:?

This floor machine is designed by manual controlling. It is outstanding for its four chief functions-floor cleaning, carpet washing, polishing and grinding, which can meet with customers＇requirements for these different functions. Suited for the commercial use, e.g. in hotels, schools, hospitals, factories, shops, offices, and rental companies. It＇s designed accurately and it works by gears box equipped with two capacitors which make it safer and more powerful.

Note:

This machine is not suitable for cleaning surfaces which release toxic liquids and dusty environments, and not use the machine on steps.

This machine is intended exclusively for use in building interiors, not approved for use on roads.

Floor coverings must be tested for suitability for this cleaning process before use.

Pay attention to the area compression of point-elastic floors,? e.g. in gymnasiums.

Specifications
