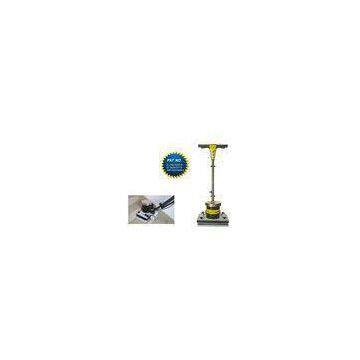

Multi Purpose concrete floor cleaning machine floor orbital sander for commercial use

Multi Purpose concrete floor cleaning machine floor orbital sander for commercial use

Quick Detail:

Description:

> Power: 1000 W

> Volt: 110/220 V, 50/60 HZ

> Working Width: 200 mm X 350 mm (8”X14”)

> Working Speed: 2900 orbits per minute

> Gross Weight: 38.0 KG

> Standard accessories: 1 piece each of #40, #60, #80, #120 Sanding Paper & Waxing Pad

> The quadrate pads allow it to work into corners that are missed by traditional “round” pads.

> Heavy duty components provide durable and dependable scrubbing

> No side torque and operates in any direction

> 2,900 8 mm orbits per minute

> Chemical Free Stripping used For Refinishing Wood Floors and Scrubbing

> Use for scrubbing, chemical free floor finish removal, and wood floor refinishing

> Quiet operation for noise sensitive areas

How to assemble the machine? Or how to use machine?

1. Assembly for Handle:

Turn the Chassis upside-down and gently press the tab on the Screw Box from underneath using a screwdriver.

Align the mounting holes in the lower portion of the Handle Tube with the front two mounting holes in the bracket at the rear of the Floor Machine’s Chassis. This is the location that the Handle Screw. Then secure the Handle Tube to the Chassis, using one Handle Screw, two Flat Washers, and one Hex Lock Nut.

2. Assembly and Replace for Sanding Paper

Assembly: Put the Handle Tube back to vertical position, then lay the machine on its back with the handle lying on the floor. Align the Vacuum hose of Sanding Paper and Tools Holder, then put the Sanding Paper onto the Tools Holder.

Replace: Follow the indication as below to lay the machine on floor, remove the Sanding Paper by hand, and then replace by a new one.

3. The motion of machine

Put the Handle back to vertical position to lock it by the Foot Pedal. Hold tight handle and makes the two wheels drop to the ground, than can push or pull the machine to move.

Applications:?

Solar Wash Quadrate orbital floor machine gives operators the ability to remove multiple layers of finish without using chemicals. As we all push for new ways to increase our protection of the environment, this new approach can help achieve increased productivity and safety.

Quadrate orbital floor machine can work with a variety of quality pads, eliminating up to 80% of the chemical stripping required. Easy operation, NO torque, NO brush marks, NO sanding marks, NO swirls, NO gears, NO motor brushes to wear out, NO belts, NO water to soil and mildew carpets and best of all NO experience needed.

Specifications

Why to choose Solar Wash Floor Polisher?

Easy operation, no experience needed.

The quadrate pads allow it to work into corners that are missed by traditional “round” pads.

Heavy duty components provide durable and dependable scrubbing

No side torque and operates in any direction

2,900 8 mm orbits per minute

Chemical Free Stripping used For R
