Home > Products > Mold Temperature Control Unit > High Temperature Mold Temperature Control Unit for Injection Machine / Bathroom Equipment / Paper Ma
High Temperature Mold Temperature Control Unit for Injection Machine / Bathroom Equipment / Paper Ma
- T/T L/C D/P D/A
- 7 days
You May Like
-
300 Full Auto Mold Temperature Control Unit Applied to Ironing machine / Chemical fiber machinery
-
OEM Industrial Oil Heating Mold Plastic Temperature Controller Mold Temperature Control Unit Equiped
-
Hot Runner Mold RHAM Oil Circulation System Mold Temperature Control Unit Equiped with Blister machi
-
High Temperature Temp.Controller Equipment Oil Circulation System Mold Temperature Control Unit 300
-
Industrial Oil Heating Mold Temperature Control Unit Oil Circulation System Applied to Boiler / Hydr
-
300 Oil Industrial Plastic Mold Temperature Control Unit Oil Circulation System used for Injection
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AEOT-40-60 |
Product Description
Certification:CE & ISO9001:2000

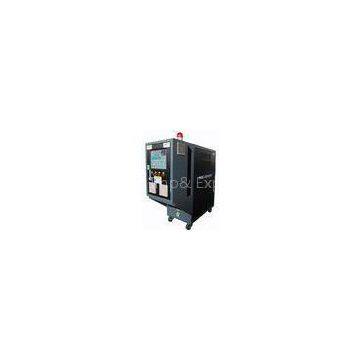

? ? ? ?AEOT-40-60 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type TCU circulate high temperature heat transfer fluid through the process application for temperature control. AEOT series MTC offer the range of temperature control from 25°C to 300 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AEOT-40-60 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
oil |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
300℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
60KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
SAP50-32-160 |
|
power |
3KW |
||
|
lift |
30M |
||
|
flow |
12.5M3/hr |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN32(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
14 |
Expansion Tank |
volume(L) |
|
