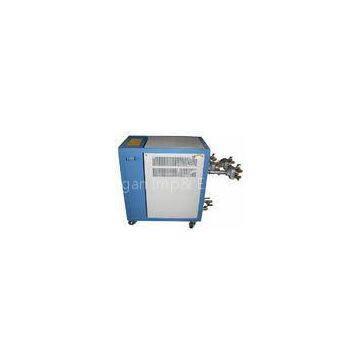

180 Industrial Mold Oil Temperature Controller Units for Rubber and Plastic / Stamping Machine
- T/T L/C D/P D/A
- 7 days
You May Like
-
OEM Indirect Cooling Industrial Plastic Oil Temperature Controller Unit 180 C Equiped with Carton S
-
High Temp. Heating Mold Oil Temperature Controller for Printing Machine / Inkjet Printer / Trademark
-
Microprocessor Mold Process Oil Temperature Controller Units 180 C for Rubber Plastic / Paper Machi
-
High Temperature Roller Mold Circulation Oil Temperature Controller Unit 180 FOR Etching machine /
-
180 Process Circulation Oil Temperature Controller Unit for Injection Molding / Paper machine / Bri
-
Heater Recirculation Process Mold Water Temperature Controller Unit 180 Applied to Edger / Bathroom
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AOS-05 |
Product Description
Certification:CE & ISO9001:2000
? ? ? ?AOS-05 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the oil in the system. Oil type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AOS series MTC offer the range of temperature control from 25°C to 180 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AOS-05 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
oil |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
180℃ |
|
|
7 |
Min. temperature |
25℃ |
|
|
8 |
heating power |
6KW(adjustable) |
|
|
9 |
heat exchange area |
0.1M2 |
|
|
10 |
Pump |
model |
WM-10-200 |
|
power |
0.75KW |
||
|
lift |
30M |
||
|
flow |
45L/min |
||
|
11 |
heating method |
Direct heating(Indirect cooling) |
|
|
12 |
Pipeline |
hot medium inlet/outlet |
DN10*2(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
13 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
14 |
Expansion Tank |
volume(L) |
8 |
