Home > Products > Industrial Temperature Controller > Water Heating Mold Plastic Rubber Industrial Temperature Controller Equipment used for Food Machiner

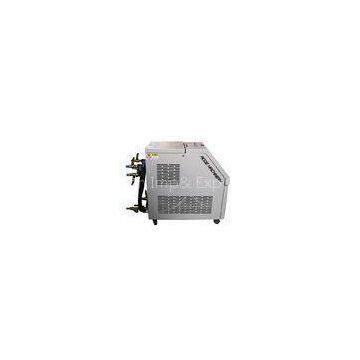

Water Heating Mold Plastic Rubber Industrial Temperature Controller Equipment used for Food Machiner
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Water Heating Mold Industrial Temperature Controller Units for Printing Machine / Cold Ro
-
Industrial Temperature Controller Units for Bottle Blowing Machine / Rubber Machinery / Knitting equ
-
Industrial Temperature Controller for Injection Molding, Equiped with Packaging machine / Centrifuge
-
Microprocessor Automatic Hot Water Circuit Temperature Controller Units 120 Industrial Temperature
-
120 Automatic Hot Water Industrial Temperature Controller Unit Applied to Shearer / Boring machine
-
Industrial Water Circulation Heater Temperature Controller Unit for Rubber Plastic 98
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | AWM-05 |
Product Description
Certification:CE & ISO9001:2000
? Brief Description of Industrial Temperature Controller ?
? ? ? ?AWM-05 Mold Temperature Control Units(MTC) are used to preheat a process to the desired operating temperature by engaging the unit\'s electric immersion heater and recirculating the water in the system. Water type MTC circulate high temperature heat transfer fluid through the process application for temperature control. AWM series MTC offer the range of temperature control from 15°C to 120 °C.
? SAFETY PROTECTIONS ?
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.? SPECIFICATION DETAILS ?
|
No. |
Part |
Specification |
Data |
|
1 |
model |
AWM-05 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
water |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
120℃ |
|
|
7 |
Min. temperature |
15℃ |
|
|
8 |
heating power |
6KW(adjustable) |
|
|
9 |
Pump |
model |
WM-10-120 |
|
power |
0.75KW |
||
|
lift |
30M |
||
|
flow |
45L/min |
||
|
10 |
heating method |
Direct heating(Indirect cooling) |
|
|
11 |
Pipeline |
hot medium inlet/outlet |
DN10*2(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
12 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display setpoint & real point |
||
|
output select |
SSR output |
||
|
13 |
Frame Size |
L*W*H(mm) |
620*325*580(without caster) |
|
14 |
|
