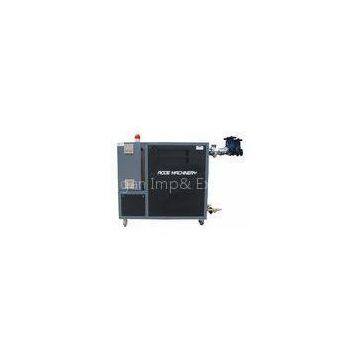

98 Water Circulation Heater Temperature Controller Unit for Rubber Forming Machine / Packaging Mach
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Industrial Rubber Machine Water Circulation Heater Temperature Controller Equipment FOR Chemical Mac
-
OEM Industrial Water Circulation Heater Temperature Controller Equipment Equiped with Packaging Mach
-
Industrial Pumping Oil Circulation Mold Temperature Controller for Compression Casting / Hydraulic e
-
Electric Process Heater Oil Temperature Controller Units for Injection Machine 180 / Offset press
-
180 Industrial Mold Oil Temperature Controller Units for Rubber and Plastic / Stamping Machine
-
OEM Indirect Cooling Industrial Plastic Oil Temperature Controller Unit 180 C Equiped with Carton S
Product Details
| Brand Name | AODE | Place of Origin | China | |
| Model Number | ARD-30-60 |
Product Description
Certification:CE & ISO9001:2000
? ? ? ?ARD-30-60 Mold Temperature Control Units(MTC) are specially custome-designed for the temperature control of Rubber & Plastic industry. This series are highly customizable, has special forced cooling function with high-strength cooling capacityg capacity. ARD series can offer the temperature range from?15°C?to?98 °C.
SAFETY PROTECTIONS:
No-fuse breaker for the overcurrent phenomenon of general power supply. Motor reversion protection and indicator light up. Cooling water lacking protection and indicator light up. Circulating pump overload protection and indicator light up. BY-PASS pressure release loop for hot oil. Phase failure protection. High-voltage explosion-proof device. Anomaly explosion-proof buzzer. Prevent dry combustion device, discharge scale deposit protection. No-voltage exhaust protection system.SPECIFICATION DETAILS:
|
No. |
Part |
Specification |
Data |
|
1 |
model |
ARD-30-60 |
|
|
2 |
power supply |
3N-380-50HZ |
|
|
3 |
Hot medium |
water |
|
|
4 |
control mode |
PC board Self - optimized microprocessor |
|
|
5 |
accuracy of temp. control |
PID±1℃ |
|
|
6 |
Max. temperature |
98℃ |
|
|
7 |
Min. temperature |
15℃ |
|
|
8 |
heating power |
60KW(adjustable) |
|
|
9 |
Pump |
model |
RGP-30-120 |
|
power |
2.2KW |
||
|
lift |
22M |
||
|
flow |
150L/min |
||
|
10 |
heating method |
Direct heating(Indirect cooling) |
|
|
11 |
Pipeline |
hot medium inlet/outlet |
DN25(adjustable) |
|
cooling water inlet/outlet |
DN15(adjustable) |
||
|
drain oil port |
DN15(adjustable) |
||
|
12 |
Temp. Controller |
model |
P6100(WEST) |
|
modulating action |
Dual PID control of heating & cooling |
||
|
Temp. interaction stick |
K- thermocouple |
||
|
display status |
Respectively display set point & real point |
||
|
output select |
SSR output |
||
|
13 |
Frame Size |
L*W*H(mm) |
1350*500*1150(without caster) |
|
14 |
Weight |
kg |
220 |
