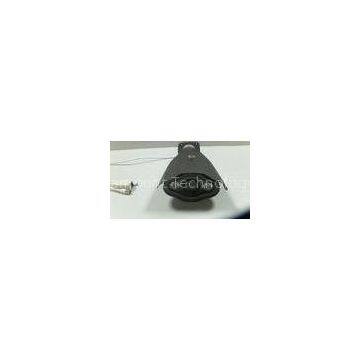

720P 1.0 Megapixel IP Camera Low Illumination IR LED Array

Parameter

1.0 megapixel 8mm fixed lens low lux? waterproof ip camera with 2 pcs? IR led array

Camera

Onvif

2.0

Image Sensor

1/2.5\"Micron Technology, 2megapixel CMOS sensor

Effective Pixel

1080×720P

Min illumination

Color:0.6Lux @(F1.2,AGC ON),0 LUX with IR

B/W:0.08Lux @ (F1.2,AGC ON),0 LUX with IR

Electronic shutter

1/50(1/60)s - ?1/100,000 s

Lens

8mm fixed ( 4mm/6mm/10mm/12mm option )

Lens Mount

M12

?Day & Night

Electronic

Compression

Video compression

H.264 Main Profile, JPEG capture

Video Bite Rate

100Kbps~6Mbps

Audio compression

G.711a


Max Resolution

1920x1080

Frame Rate

50Hz:25fps (1280×960);60Hz:30fps (1280×800)

Image settings

Saturation, Brightness, Contrast adjustable through Client software or web server

Network Function

Storage

Support ?network storage

Intelligent Alarm

Motion detect, video loss ,network disconnection, IP address conflict, storage full, storage error

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS, PPPoE, SMTP,NTP

(HTTPS,SIP ,802.1x,IPv6 optional)

Basic

Anti-flicker, dual stream, heartbeat, password protection

?????? Interface????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????????

Communication Interface

1? RJ45 10M/100M ??self-adaptive Ethernet interface

Wifi

Not equipped ?( option to chose )

3G

Not equipped ?( option to chose )

General

Operating condition

Power supply

DC12V±10%

POE

Not equipped ?( option to chose )

Power consumption

?“IR”:6W MAX;

Protection Range

IP66
