Home > Products > DVR PCB Board > 3G GPS 4ch Wireless DVR PCB Assembly Support 1D1 + 3CIF Realtime

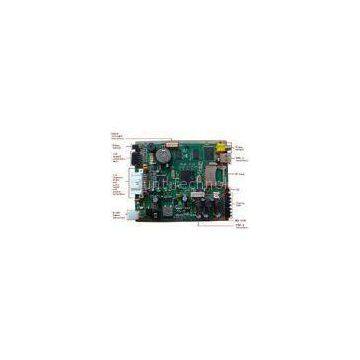

3G GPS 4ch Wireless DVR PCB Assembly Support 1D1 + 3CIF Realtime

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Fortunemount		Place of Origin	China
Model Number	MDVB-D13043G

Delivery Time:2 weeks based on sales forecast and 1 month without any sales forecast

3G GPS 4ch Wireless DVR PCB Assembly Support 1D1 + 3CIF Realtime

Featuers

·Using H.264 Compression algorithm, high compression ratio, image more clearly;

·With 8---36 V wide voltage design, for all kinds of automobiles;

·Support one D1 and three CIF realtime recording;

·Support 4---32G SD card storage;

·Using special file management mechanism, it can encrypt the data, and effectively protect data security;

·With dual streaming technology, it can ensure the effect of local video recording, and also ensure the wireless transmission effect;

·Support to overlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal;

·Support 3G transmission;

·Support GPS.

	Model	MDVB-D13043G
Project	Device parameter	Performance
System	Processor	Hi3512
OS	Embedded Linux OS
Operating language	Simplified/En/Traditional
Operator interface	GUI, support mouse
Safety management	User password, Admin password in two layer management system
Video	Video standard	PAL(625 lines,50 scenes/sec);NTSC(525lines,60 scenes/sec)
Compression	H.264(Main Profile)
Live view quality	D1
Playback quality	CIF/D1
Encoding capacity	1D1+3CIF realtime; 4CIF realtime
Decoding capacity	1D1 realtime; 4CIF realtime
Input	4 channel composite video input
Output	2 channel composite video output
Display	Single picture,4 pictures; alarm screen automatic switch
Audio	Compression	ADPCM
Input	4 channel audio input
Output	1 channel audio output
Recording mode	Video and audio synchronously recording
Speech talkback	Supported
Recording & playback	Recording type	Manual,Schedule,Alarm,Circle recording
Video bitrate	64Kbps~1.5Mbps
Audio bitrate	8KB/s
Storage medium	Support 1 SD card
Recording file search type	According to channel , time, video types
Playback	Playback by files; 4 channels playback
Startup/ Shutdown	Startup mode	ACC, Schedule
Shutdown mode	ACC delayed shutdown.,Schedule shutdown,hard disk lock off shutdown
Software updating	Update mode	Manual,automatic updating when power on
Update method	USB interface; SD card; wireless
Interface	Video input	4 channels aviation head interface
Video output	1 channel aviation head inter
