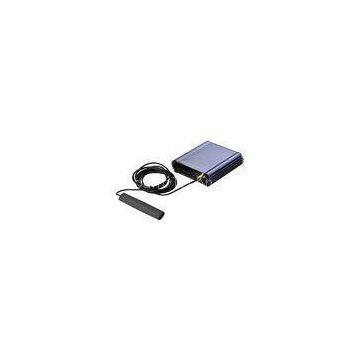

Vehicle Mounted 3G DVR
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
IR Megapixel IP Camera
-
Vehicle Mounted 4 Channel DVR
-
12 V Onvif 2.0 Megapixel IP Camera 2MP CMOS High Resolution
-
5.0 High Resolution Megapixel IP Camera Intergrated 4mm - 12mm Lens For Office
-
Wireless Outdoor 5.0 Megapixel IP Camera 1/2.5 Inch 5MP CMOS Sensor
-
HD 2.0 Waterproof Network IP Megapixel IP Camera Low Lux
Product Details
| Brand Name | Fortunemount | Place of Origin | China | |
| Model Number | FM-SDVR004-GW |
Product Description
Certification:CE,FCC
Model: FM-SDVR004-GW
H.264 High Profile Vehicle Mounted DVR Support 3G
Key Features:
Embedded operating system, assuring reliability and system ir
?Records up to four channels of full-motion color video with corresponding audio tracks.
?Power, AV input and output cables.
?H.264 High Profile video compression.
?Removable SD card, Class 4, minimum (customer supplied).
?Front panel USB2 port for recording to a flash card as an optional storage device.
?Support 3G (Support UMTS 2100/1900/900/850(WCDMA)
?Ignition sense that provides DVR power-on in recording mode when the bus is started, power-off when the bus is hut-down with operator-selected delay times.
Introduction :
The SDVR series mobile digital video recorder is a compact, full-featured recording system that uses a SD card as a storage device. The recorder unit and associated accessories are specifically designed for operation in a mobile environment.
The SDVR system, used in conjunction with the cameras, records up to four channels of full-motion video and audio data to a Class 4 (minimum) SD card. The firmware-driven menu system provides a simple method for configuring the unit\'s operation as well as searching for and viewing previously recorded AV records.
List of standards:
|
Item |
Description |
Quantity |
|
1 |
SD Video Recorder |
1 pc |
|
2 |
AV input cable |
1 pc for 1 channel |
|
2 pcs for 2 channel |
||
|
4 pcs for 4 channel |
||
|
3 |
AV output cable |
1 pc |
|
4 |
3G Antenna |
1 pc |
|
5 |
Signal cables |
1 pc |
|
6 |
Power cable |
1 pc |
|
7 |
Remote Controller |
1 pc |
|
8 |
Fuse box |
1 pc |
|
9 |
1.5A fuse |
2 pcs |
|
10 |
User\'s Manual |
1 pc |
Specifications:
|
ITEM |
FM-SDVR004-GW |
|
|
VIDEO |
VIDEO INPUT |
4 channels |
|
VIDEO OUTPUT |
1 channel, 1.0V, p-p, 75Ω,BNC |
|
|
VIDEO FORMAT |
Support PAL/NTSC |
|
|
VIDEO COMPRESSION |
H.264 High Profile |
|
|
RECORD RESOLUTION |
1280x1024(PAL)/ 1248x832(NTSC) |
|
|
FRAME RATE |
100fps(D1 PAL) 120fps(D1 NTSC) |
|
|
VIDEO BITRATE |
1.98Mbps ?4.5Mbps, 4 level video quality |
|
|
AUDIO |
AUDIO INPUT |
4 channels |
|
AUDIO INPUT FORMAT |
20KΩ, RCA |
|
|
AUDIO OUTPUT |
1 channel, 500Ω, RCA |
|
|
AUDIO LEVEL |
1V ?2V, p-p |
|
|
AUDIO |
