GPS Vehicle Mounted DVR 4 D1 Realtime Recording

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Fortunemount		Place of Origin	China
Model Number	FM-MR9304-GW

Delivery Time:2 weeks based on sales forecast and 1 month without any sales forecast

Model: FM-MR9304-GW

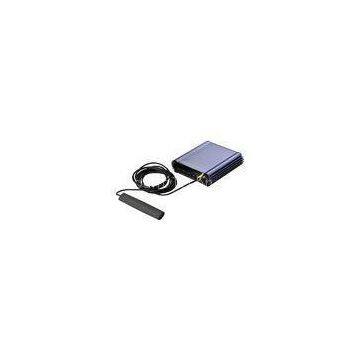

GPS Vehicle Mounted DVR 4 D1 Realtime Recording

Functions:

1.Using H.264 Compression algorithm, high compression ratio, image more clearly;

2.With 8-36 V wide voltage design, for all kinds of automobiles;

3.Support 4 D1 realtime recording,image more clearly;

4.Using special file management mechanism, it can encrypt the data, and effectively protect data security;

5.Using particular error scan technology of the hard disk, it can ensure the continuity of recording, and also prolong the hard disk life

6.With dual streaming technology, it can ensure the effect of local video recording, and also ensure the wireless transmission effect;

7.Support recording to SD card and hard disk at the same time;

8.Support to overlay some vehicle informations, such as the stops information, speed, brake signal, and door open or closed signal;

9.Support 3G transmission;

10.Support GPS;

11.Support WIFI.

FM-MR9304 Based on Hi3515 platform vehicle-mounted DVR

Specification:

Project	Device?parameter	Performance
System	Processor	Hi3515
OS	Embedded?Linux?OS
Operating?language	Simplified/En/Traditional
Operator interface	GUI,?support?mouse
Safety?management	User?password,?Admin?password?in? two?layer?management?system
Video	Video?standard	PAL(625?lines,50?scenes/sec); NTSC(525lines,60?scenes/sec)
Compression	H.264(Main?Profile)
Live?view?quality	D1
Playback?quality	CIF/D1
Encoding?capacity	4D1?realtime
Decoding?capacity	4D1?realtime
Input	4?channel?composite?video?input
Output	2?channel?composite?video?output
Display	Single?picture,4?pictures;? alarm?screen?automatic?switch
Audio	Compression	ADPCM
Input	4?channel?audio?input
Output	1?channel?audio?output
Recording?mode	Video?and?audio?synchronously?recording
Speech?talkback	Supported
Recording?&?playback	Recording?type	Manual,Schedule,Alarm,Circle?recording
Video?bitrate	64Kbps~1.5Mbps
Audio?bitrate	8KB/s
Storage?medium	Support?1?SD?card?and?1?SATA?hard?disk
Recording?file?search?type	According?to?channel?,?time,?video?types
