Home > Products > Industrial Panel PC > 8 Inch Touchscreen Industrial Panel PC With Windows CE 6.0 R3 PC-865 For Navigation System

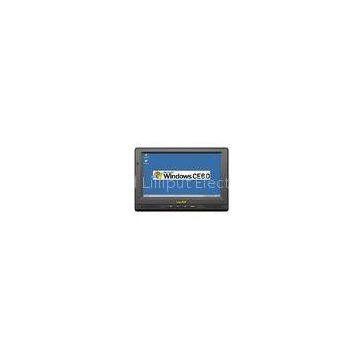

8 Inch Touchscreen Industrial Panel PC With Windows CE 6.0 R3 PC-865 For Navigation System
Negotiable
/ Meter
1 Meter(Min.Order)
- 0 Meter / Meters per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
GSM / GPRS Industrial Touch Screen Panel PC For Home Automation With Samsung S3C2416 CPU
-
3G WiFi PC-745 RS232 Windows Industrial Touchscreen Panel PC With USB Multi language OSD
-
Information Display 3G Wi - Fi Touch Industrial Panel PC with Embedded platform
-
Industrial Multi Touch Panel PC FOR Advertising Terminal / Service Kiosk
-
IP64 Touch Screen Bluetooth Industrial Panel PC With Wide Power Voltage High speed Freescale CPU
-
Windows CE 6.0 8 inch Touchscreen Industrial Panel PC With TI OMAP3525 CPU
Product Details
| Brand Name | LILLIPUT | Place of Origin | China | |
| Model Number | PC-865 |
Product Description
Certification:CE FCC
8 Inch Touchscreen Industrial Panel PC With Windows CE 6.0 R3 PC-865 For Navigation System
Powerful TI CPU;
3 × USB 2.0 interfaces;
Wide power voltage 9-24V;
Built-in speaker;
Strong vibration resistance;
RS232×2;
Features:
Using industrial-grade embedded platform, the system is stable and reliable, it has rich interfaces.
Wireless communication, GPS navigation, fault detection, video acquisition and other functions, extensible to provide users with a powerful vehicle-mounted mobile multimedia information systems.
It can be widely used in personal entertainment, emergency command, transportation scheduling, mobile office, multimedia advertising, industrial control and other fields.
Comply with IP64 Standard, dust & water-proof; Powerful TI CPU; 3 × USB 2.0 interface; 9-24V Wide power voltage; Built-in speaker; Strong vibration resistance; RS232×2. Optional: Wi-Fi 802.11 b/g/n & Bluetooth (built-in), GPS. Applications: Information Display; Digital Signage; Advertising Terminal; In-Home Control Device; Smart Energy Application; Security & Surveillance; General Communication; Distance Data Acquisition; Navigation System.| Display Screen | 8\" LED backlit |
| Resolution | 800×480 (1,152,000 pixels) |
| Touch Panel | 4-wire resistive |
| Brightness | 300cd/㎡ |
| Aspect Ratio | 16:9 |
| OS | Windows CE 6.0 R3 / Linux 2.6.32 |
| CPU | TI OMAP3525, 600MHz processor |
| Core | ARM Cortex-A8 |
| Memory | 256MB Flash ROM + 128MB LPDR, support up to 512MB Flash + 256M LPDR |
| Expansion Storage | SD card, supports up to 16G |
| LAN | Ethernet 10 / 100M (RJ45) |
| Transfer Interface | USB Host 2.0×2, USB Device 2.0 x 1 RS232×2 |
| Audio | Ear phone slot×1 Speaker(front)×2 |
| Speaker | 1W |
| Power consumption | 10W |
| Working Temperature | -10 - 65oC |
| Storage Temperature | -25 - 80oC |
| Power Supply | DC 9-24V |
| Dimension(LWD) | 215 × 146.5 × 37.5 mm |
| Weight | 662g |
Accessories:
1. PS/2 to RS232×2 cable 1 piece
2. 1×3 audio video cable 1 piece
3. USB cable 1 piece
4. 12V DC adapter 1 piece
5. Bracket 1 piece
6. CD drive 1 piece
7. Manual 1 copy
8. SD card (optional) 1 piece
