Home > Products > 3G SDI Monitor > 8 x Zoom IPS panel 3G SDI Monitor With Vectorscope / Waveform , Lilliput LCD Monitor
8 x Zoom IPS panel 3G SDI Monitor With Vectorscope / Waveform , Lilliput LCD Monitor
Negotiable
/ Carton
1 Carton(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
Multi Receivers Lilliput Wireless 7 HDMI Monitor With FHD 60Hz video format
-
Histogram Exposure HDMI Camera Top Monitor With Pixel to Pixel Lilliput 7 inch monitor
-
Color / RGB Histogram 400cd/m2 HD Field Monitor / Lilliput HDMI Monitor
-
Lilliput USB 2.0 IPS Screen Video Dual Rack Mount Monitor With 3G SDI
-
Professional FPV LCD Monitor 5.8GHz With Wireless AV Receive Lilliput 7 inch Monitor
-
Wireless Touchscreen 7inch Industrial Panel PC Comply with IP64 600MHz processor
Product Details
| Brand Name | LILLIPUT | Place of Origin | China | |
| Model Number | 663/S2 |
Product Description
Certification:CE / FCC
8 x Zoom IPS panel 3G SDI Monitor With Vectorscope / Waveform , Lilliput LCD Monitor
High resolution IPS panel 3G SDI Monitor With Vectorscope / Waveform / Peaking

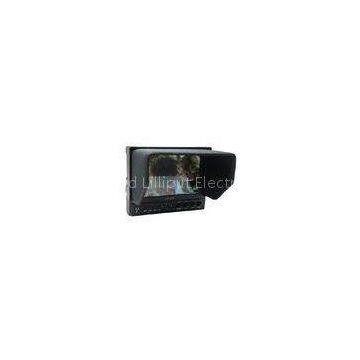

Lilliput 663/S2 7\" IPS HD-SDI LCD Monitor With Vectorscope/Waveform/Peaking/False Colors/Histogram Functions
IPS panel wide viewing angles, High resolution: 1280×800, High brightness: 400cd/m2, High contrast: 800:1, Faster response time, Wide voltage: DC 7-24V, TALLY interface with indicating light, Firm & portable design, POP-UP shortcut menu, Suitcase make monitor watertight, crushproof and dust proof.Advanced Functions:
Vectorscope, Waveform, Audio level meter, Peaking Filter, False Colors, Histogram, Exposure, Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Parameters:
?
| DISPLAY | Panel | 7\" IPS |
| Physical Resolution | 1280×800, support up to 1920×1080 | |
| Aspect Ratio | 16:9 | |
| Brightness | 400cd/㎡ | |
| Contrast | 800:1 | |
| Viewing Angle | 178°/178°(H/V) | |
| INPUT | 3G-SDI | 1 |
| HDMI | 1 | |
| YPbPr | 3(BNC) | |
| VIDEO | 1 | |
| AUDIO | 2(L/R) | |
| OUTPUT | 3G-SDI | 1 |
| HDMI | 1 | |
| AUDIO | Speaker | 1(built-in) |
| Ear Phone Slot | 1 | |
| POWER | Current | 900mA |
| Input Voltage | DC 7-24V(XLR) | |
| Battery Plate | V-mount / Anton Bauer mount / F970 / QM91D / DU21 / LP-E6 |
|
| Power Consumption | ≤11W | |
| ENVIRONMENT | Operating Temperature | -20℃～60℃ |
| Storage Temperature | -30℃～70℃ | |
| DIMENSION | Dimension(LWD) | 191.5×152×31 / 141mm (with cover) |
| Weight | 760g / 938g (with cover)/ 2160g (with suitcase) |
Accessories:
1. Folding sun shade cover: 1piece
2. Shoe mount: 1piece
3. Battery plate (F-970, QM91D, DU21 or LP-E6): 2pieces
4. HDMI A/C cable: 1piece
5. DC 12V adapter: 1piece
6. Power and TALLY cable: 1piece
7. Suitcase: 1piece
8. Manual: 1copy
9. V-mount battery plate (optional): 1piece
10. Anton Bauer mount battery plate (optional): 1piece
