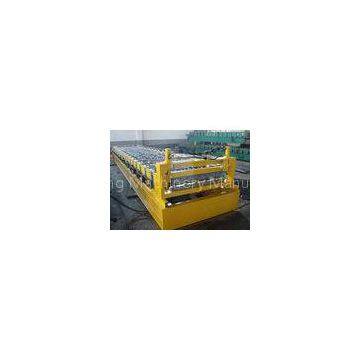

Color Steel Sheeting Wall And Roof Panel Roll Forming Machine 10-12m/min

?
Color Steel Sheeting Wall And Roof Panel Roll Forming Machine 10-12m/min
?
?
Quick Detail:
?

?
?
Description:
?
1. Production flow chart:
Un coiler---feeding---Roll forming---Cut to length---Final product?
?
?
?
2. Profile drawing of 28-200-1000 roof panel

?
3. Specification of roll forming machine
(1) Material of frame : (high grade) 400mm H shape steel welding
(2) Thickness of middle plate : 20mm (whole plate)
(3) Step of roller : 18 steps
(4) Diameter of shaft (solid shaft): 74mm
(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment
(6) Material of roller: 45# Steel
(7) Treatment of roller : hard chromize coated 0.05-0.07mm
(8) Drive type of roll forming machine : drive by chain
(9) Chain : 25.4mm (high grade)
(10) Bearing : 6210 (high grade)
(11) Reducer : 5# cycloid reducer (high grade)
(12) Power of main motor : 4KW????????????????????????????????????????????????????????????
(13) Voltage : 380V/50Hz/3phase
(14) Motor power of hydraulic station : 4kw
(15) Line speed : about 10-12 m/min
(16) Oil pump of hydraulic station : gear oil pump (high grade)
(17) Hydraulic cutting: cutting controlled by PLC
(18) Accuracy of cutting : 2mm
(19) Razor blades material : Cr12, quenching 58-62 °.
(20) Appearance size of main forming machine : 8.0m (length)*1.6m (width) *1.4m (height)
(21) Electrically controlled system : entire machine controlled by PLC
(22) PLC : DELTA(TAIWAN)
(23) Frequency converter : DELTA(TAIWAN)
(24) Frequency converter power : 5.5KW
(25) Encoder : RUI PU(high grade)
(26) Controlling desktop : touch screen (high grade)
(27) Electrical parts : DELIXI or CHINT
?
Note:
1. Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2. Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.
3. We can make and design what kinds of roll forming machine according to the request of customers.
?
?
?
Applications:?
?
It use for industrial workshop, residential house, warehouse, simple steel shed etc.
?
?
Specifications
?
?

?
Why to choose our roll forming machine?
?
Over 20 years experience, ISO certificate, near Tianjin port, this is how we keep good quality and competitive prices for global valued customers. And OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
After-sales service:
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad ,we will arrange the technician,but the buye
