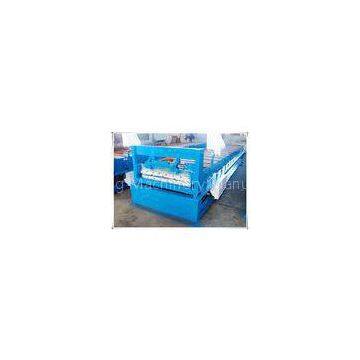

Metal Corrugated Tile Wall Panel Roll Forming Machine 400mm H Shape

Metal Corrugated Tile Wall Panel Roll Forming Machine 400mm H Shape

Quick Detail:

Description:

Un coiler---feeding---Roll forming---Cut to length---Final product

??2. Specification of roll forming machine

(1) Material of frame : (high grade) 400mm H shape steel welding

(2) Thickness of middle plate : 12mm (whole plate)

(3) Step of roller : 15 steps

(4) Diameter of shaft (solid shaft): 74mm

(5) Material of shaft (solid shaft): (high grade) 45# Steel,quenching and tempering treatment

(6) Material of roller: 45# Steel

(7) Treatment of roller : hard chromize coated 0.05-0.07mm

(8) Drive type of roll forming machine : drive by chain

(9) Chain : 25.4mm (high grade)

(10) Bearing : 6210 (high grade)

(11) Reducer : 5# cycloid reducer (high grade)

(12) Power of main motor : 3KW????????????????????????????????????????????????????????????

(13) Voltage : 380V/50Hz/3phase

(14) Motor power of hydraulic station : 3kw

(15) Line speed : about 9-15m/min

(16) Oil pump of hydraulic station : gear oil pump (high grade)

(17) Hydraulic cutting: cutting controlled by PLC

(18) Accuracy of cutting : 2mm

(19) Razor blades material : Cr12, quenching 58-62 °.

(20) After-sales service provided:Overseas service center available

(21) Electrically controlled system : entire machine controlled by PLC

(22) PLC : DELTA(TAIWAN)

(23) Frequency converter : DELTA(TAIWAN)

(24) Frequency converter power : 5.5KW

(25) Encoder : RUI PU(high grade)

(26) Controlling desktop : touch screen (high grade)

(27) Electrical parts : DELIXI or CHINT

Note:

1. Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.

2. Controlling by computer,PL display,operationis easy,running is steadyand reliable,endurable,maintence-free.

3. We can make and design what kinds of roll forming machine according to the request of customers.

Applications:?

It use for industrial workshop, residential house, warehouse, simple steel shed etc.

Specifications

Why to choose our roll forming machine?

Over 20 years experience, ISO certificate, near Tianjin port, this is how we keep good quality and competitive prices for global valued customers. And OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.

After-sales service:

1. We provide the technical support for whole life of our machines.

2. If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including v
