Metal Sheet Double Head Uncoiler Machine , Hydraulic Color Steel Decoiler
- 0 per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Powered Stainless Steel Coil Uncoiler Machine With Hydraulic Control System
-
3kw Steel Sheet Hydraulic Bending Machine / 4m Sheet Metal Bender
-
Hydraulic Shearing Cutting Machine For Scrap Metal Waste Iron Aluminum Copper
-
Water Wave Automatic Corrugated Roof Panel Roll Forming Machine With Color Steel
-
EPS Sandwich Panel Roll Forming Machinery , Sheet Metal Roll Forming Machines
-
Automatic Corrugated Roofing Sheet Roll Forming Machine 9-12m/min Drive By Chain
Product Details
Brand Name | HUATONG | Place of Origin | China | |
Model Number | 5T |
Product Description
Certification:ISO9001:2000

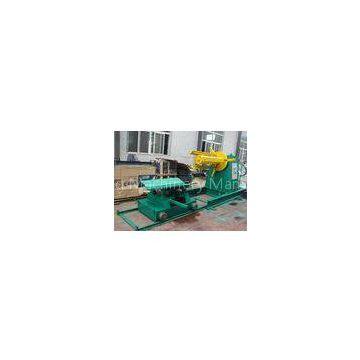

Metal Sheet Double Head Uncoiler Machine , Hydraulic Color Steel Decoiler
Quick Detail:
Name |
Hydraulic decoiler |
Application |
Un coiler |
Tile type |
Steel coil |
Capacity |
5 ton |
Color |
Any |
Certificate |
ISO9001:2000 |
Description:
1). Main Technical Data?
(1) Form of decoiler : Hydraulic Tension and electric discharge
(2) Motor power of decoiler : 11KW
(3) Motor power of Hydraulic station : 11KW
(4) Inside dia of coil : φ508㎜,φ610㎜
(5) Outside dia of coil : φ1800㎜
(6) Width of coil : 1600㎜
(7) Weight of coil : 25T
(8) Speed of decoiling : 0-20m/min
(9) Pressure of hydraulic system : 10Mpa
(10) Way of control : Multi-level photoelectric automatic tracking
(11) Outline dimension of decoiler : 3200mm×1700mm×1800mm
(12) Voltage of control : 3P/440V/60HZ
(13) Voltage of hydraulic pressure : DC24V
2), Hydraulic feeding car
(1) Stroke hydraulic lift cylinder : 500mm
(2.) Stroke of car : 2.5m
(3) Pressure of hydraulic system : 6Mpa
(4) Structure and description of feeding car
(5) Hydraulic feeding car :
Composition: steel welded body, four guide columns V-lifts, hydraulic straight top-cylinder, cycloid pin wheel reducer walking system and tracks.
Functions and features:Use for coil loading and unloading, with up and down movements, the level of mobility features smooth coil,can upgrade to a certain height so as to ensure the smooth plane of the coil into coil. V-type lifting platform lifting hydraulic-driven, horizontal movement by the slowdown in motor drive
3), Equipment composition
Feeding car, rail, decoiler machine, electronically control
abinet, hydraulic station
2. We can customize the design and fabrication on the particular type of machine according to the request of customer.
Note:
1. Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material plate.
2. Controlling by computer,PL display, operation easy, running is steady and reliable,endurable, maintenance-free.
3. We can make and design what kinds of roll forming machine according to the request of customers.
Specifications
Model |
Hydraulic steel coil decoiler |
Control |
PLC |
PLC |
DELTA(TAIWAN) |
Guarantee |
1 year |
Certificate |
ISO9001:2000 |
Why to choose our roll forming machine?
Over 20 years experience, ISO certificate, near Tianjin port, this is how we keep good quality and competitive prices for global valued customers. And OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.
After-sales service:
1. We provide the technical support for whole life of our machines.
2. If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should take all the cost,including visa,roundtrip ticket etc.
Contact Us
- Nanpi Huatong Roll Forming Machinery Manufacturing Company
- Contact nameMr. Song Chat Now
- Phone86-317-8189769
- AddressDaodong street,Botou city,Hebei province,China, Weifang, Shandong
