Home > Products > Advertising LED Displays > Full Color Advertising LED Displays , P16 outdoor LED Billboard Signs

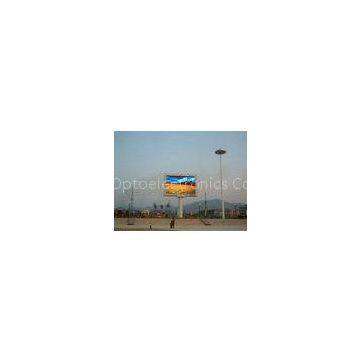

Full Color Advertising LED Displays , P16 outdoor LED Billboard Signs

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	TeehoLED		Place of Origin	China
Model Number	CE, 3C , RoHS, ISO,FCC,UL

Product Description

Delivery Time:15-20days
Certification:CE,UL, ROHS, 3C, ISO,FCC

Quick Detail:

1.High definition led advertising display
2.Environment advertising display
3.Fast response
4.CE&RoHS

Full?Color?Advertising?LED?Displays?,?P16?8?Bit?LED?Billboard?Signs

Description:

1.Wide application field&short ROI time:Commercial advertising LED display, Stadium perimeter LED display,Mobile trailer LED panel for mobile media,shopping mall LED panel for logo showing,bank&stock exchange LED panel for rates showing,train&bus station,air port,telecommunication LED panel system for information showing and instruction.

2.High Contrast:7000:1,which is a very high level to ensure a vivid image of our LED display screen system.

3. First-class LED chip: Supplied by Ni-chia of Japan to ensure the long lifetime and high brightness of our LED screen system.

4.Clear vivid image quality even in direct, full-on sunlight to ensure you attracts more audience to get short ROI of your LED screen’s investment.

5.Long-term Brightness:7000-nit brightness( for outdoor full color) (1200-2700 nits brightness for indoor full color)capacity throughout product lifetime of the LED display.

Applications:

???????????? Park

???????????? Sports stadiums

???????????? Airport station

???????????? Business establishments

???????????? Public square

???????????? Super market

LED Specification

Part Number	TeehoLED-P16
Resolution	16(H)×8(V)
Pixel Pitch	16mm(Virtual:8mm)
LED Configuration	2R1G1B -DIP
Pixel Density	3,906 pixels/ ㎡
Module Size	256×128mm
Cabinet Size	1024×768mm, 768×768mm, etc.
Driving IC	MBI5024??? led & IC mounted to 2 PCB design
Driving Method	Static State, Constant Current
Weight	58KG/sq.m.
Mechanical Ratings
Hanging Weight Support	2T
Surface Flatness	Gap<0.5mm
Optical Ratings
Brightness	>8,000cd/ ㎡
View Angle	120°/60°
Gray Scale	8bits input, correction with 14bits
Display COLOR	16.7M
Brightness Adjustment	0～100% 10 level
Power Supply
Operation Power	90～260V 50～60Hz
Max. Power Consumption	1200W/ ㎡
Average Power Consumption	350W/ ㎡
Control System
Control Mode	Synchronous display with control PC by DVI
Frame Update Frequency	60～85Hz
Screen Refresh Frequency	300～1000Hz
Gamma Correction	-5.0～+5.0
Support Input	Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI
Control Distance	Ethernet cable<120m or Fib
