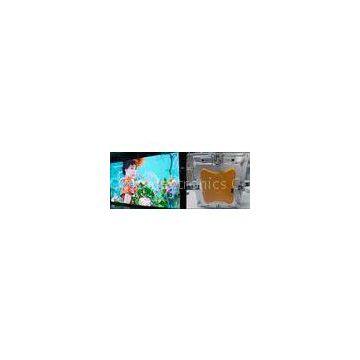

Super Slim P4 Rental LED Display Screen 8 Bit MBI5024 IP43 , LED Video Panel Rental

Part Number

Teeho-P4-16S

Resolution

64(H)×32(V)

Pixel Pitch

4mm

LED Configuration

1R1G1B 3-IN-1 SMD

Pixel Density

62,500 pixels/

Module Size

256*128mm

Driving IC

MBI5024

Cabinet Size

480mm x 480mm

Driving Method

1/16 Scan, Constant Current

Cabinet Weight

7KG

Mechanical Ratings

Hanging Weight Support

2T

Surface Flatness

Gap<0.5mm

Optical Ratings

Brightness

>2,300cd/ ㎡

View Angle

120°/120°

Gray Scale

8bits input, correction with 14bits

Display COLOR

16.7M

Brightness Adjustment

0～100%

Power Supply

Operation Power

90～260V 50～60Hz

Max. Power Consumption

850W/ ㎡

Average Power Consumption

280W/ ㎡

Control System

Control Mode

Synchronous display with control PC by DVI

Frame Update Frequency

60～85Hz

Screen Refresh Frequency

300～1000Hz

Gamma Correction

-5.0～+5.0

Support Input

Composite, S-Video, Component, VGA, DVI, HDMI, HD_SDI

Control Distance

Ethernet cable<120m or Fiber Optic<10Km

Brightness Correction

Pixel, Module, Cabinet

Environmental

Operating Temperature

-20°～+60°

Operating Humidity

10～95% RH

Operating Life

100,000hours

MTBF
