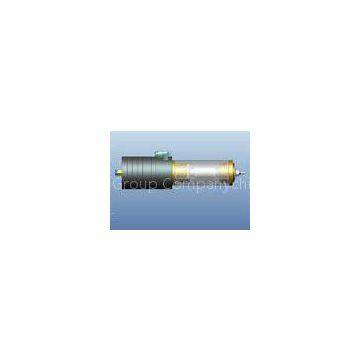

60000 RPM CNC Router Spindle PCB Drilling Spindle For Teeth Grinding
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
0.85KW 200000 RPM Precision CNC Router Spindle Dynamic Run Out
-
PCB Drilling Motorized CNC High Speed Spindle 200000RPM PCB Spindle
-
ABW110 110000 rpm Westwind Air Bearings for EXCELLON machine
-
ABWR80 Westwind Air Bearing , PCB Drilling / Routing Spindle Air Bearings
-
D1201-21 Westwind Air Bearing PCB Drilling Spindle Air Bearings
-
milling / grinding Westwind Air Bearings Low thermal growth D1331-41
Product Details
| Brand Name | KLKJ | Place of Origin | China | |
| Model Number | KL-200B |
Product Description
Certification:ISO9001:2008 ; UKAS; IAF
PRODUCT?DESCRIPTION
MODEL:KL-60C-1
NAME?:BALL?BEARING?SPINDLE
SPEED?RANGE:10,000?-?60,000?rpm
BEARING?TYPE:Ball?bearing
SPINDLE?WEIGHT:4.6kg
COLLET?SIZE:?3.175—?6
Air?Pressure:≥6?kgf/cm2
Motor?power:1.2KW-1.5KW
Coolant:Water??oil
Coolant?water?temperature:20+2
Voltage:33-200V
MAX.?CURRENT?(A):3A
Dynamic?Runout:≤8
Vibration:1.0MM/S
Temperature?sensor?ohms?KΩ:?R=10±3%?AT?25℃
TORQUE(g):??3.175≥800g???6≥1500g
Competitive?Advantage:
LOW?STATIC
LOW?DYNAMIC?RUN?OUT
STABLE?CHARACTER?AND?LONG?LIFE
SUITABLE?FOR?P.C.B?ROUTING?INDUSTRY,?OPTIC?EYEGLASSES?GRINDING,?TEEGH?GRINDING.
WATER-PROOF
APPLICATION?:
1,?PRINT?CIRCUIT?BOARD?ROUTING?PROCESS
MACHINE?REFERENCE:KLINGINBERG?PLURITEC?；HITACHI?；LENZ?；ANDERSON?….
2,?OPTIC?EYEGLASSES?PROCESS
3,?TEETH?GRINDING
Quick?Detail:
|
MODEL |
NAME |
DESCRIPTION |
Application? |
Machine?reference |
Bearing?type |
|
KL-60C-1 |
SPINDLE |
SPEED?RANGE: 10,000?-?60,000?rpm High?precision?routing |
Print?Circuit?Boad?Routing? |
TALIANG;?LISONG |
Ball?Bearing |
SPECIFICATION:
|
SPEED?RANGE |
10,000-60,000 |
|
FREQUENCY?(HZ) |
167-1000 |
|
MOTOR?TYPE |
THREE?PHASE |
|
MOTOR?OUTPUT?POWER |
1.2KW-1.5KW |
|
TORQUE(g) |
?3.175≥800g???6≥1500g |
|
VOLTAGE?(V) |
33-200 |
|
COLLET?CLAMPING?DIAMETER?(mm) |
?3.175—?6 |
|
COLLING?TEMPERATURE(°C) |
20 |
|
BEARING?TYPE |
BALL?BEARING |
|
AIR?PRESSURE?(kg/cm2) |
≥6 |
|
RUNOUT?(μm) |
≤8 |
|
VIBRATION?(mm/s)? |
≤1.0 |
|
THREE?PHASE?RESISTANCE?(Ω) |
2.2 |
|
COLLET?LOCK?TYPE |
DEAD?COLLET |
|
SPINDLE?WEIGHT?(kg) |
Around?4.6 |
|
MAX.?CURRENT?(A) |
<?5 |
|
GRIP?AIR?PRESSURE?(kg/cm2) |
≥1.5 |
|
RELEASE?AIR?PRESSURE?(kg/cm2) |
≤4.5 |
Spindle?drawing?
