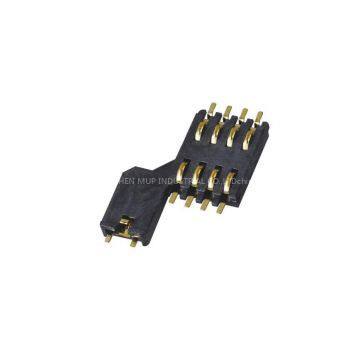

High Quality 8 Pin sim card connector normally open
- 40000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | MUP | Place of Origin | China | |
| Model Number | MUP-C737 |
Product Description
1.SIM card socket
2.ISO ROHS EMV approved
3.used in:Wireless Phone, Mobile,Card Reader,GPS.
4.long life:5000 cycles min
Technical characteristics
1.General characteristics
Dimensions:24.00L*18.75W*2.75Hmm
Weight:1.0±0.2g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contacts:6pins
Contact resistance:50MΩ typical,1000 MΩ max
Insulation resistance:>1000 MΩ/500V DC
4.Solderability
Wave:not applicable
Vaporphase:215oC30sec Max
IR reflow:230oC,15sec Max
Manual soldering:360oC,3sec.Max
5.Environmental characteristics
Operating temperature-40oC +85oC
Operating humidity:10%≈+95%RH
Storage temperature:-40oC≈+85oC
Storage humidity:10%≈95%RH
Thermal shock: -40oC≈+85oC,5cycles
Damp Heat:40oC,90%RH,10days
Salt-mist:35oC,5%Nacl,24H
