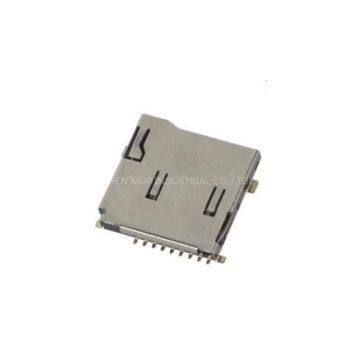

MicroSD Card Connector
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | MUP | Place of Origin | China | |
| Model Number | MUP-M614 |
Product Description
1.MicroSD card connector
2.SMT Push type 8pin
3.Blade Switch:Normally open
4.ROHS compliant.
5.used:Mobile,USB card read
MicroSD card Connector
1) 8 Pin
2) SMT Type (Without Post)
3) DIM: 14.50L * 14.75W * 1.85H mm
Technical characteristics
1.General characteristics
Dimensions:14.50L*14.75W*1.85H mm
Weight:Approx 0.70g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contact:8pin
Contact resistance:100MΩ max
Insulation resistance:100 MΩ min
4.Solderability
Vaporphase:215oC,30sec Max
IR reflow:250oC,5sec Max
Manual soldering:370oC,3sec Max
5.characteristics
Operating humidity:10% ? +95%RH
temperature:-40oC ? +85oC
Storage humidity:10% ? +95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat:40oC,90%RH,500H
Salt-mist:35oC,5%Nacl,48H
