Home > Products > SIM card holder > Push type card connector

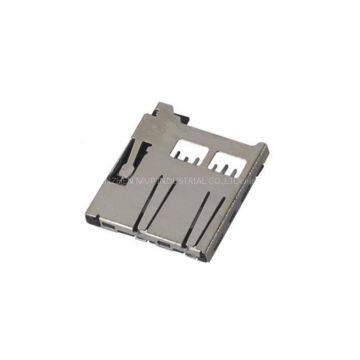

Push type card connector
- 20000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | MUP | Place of Origin | China | |
| Model Number | MUP-M617 |
Product Description
1.T/Flash card reader
2.SMT type
3.Blade switch:Normally close
4.Push push type
5.ROHS compliant.used:Mobile,card reader
T/flash card reader
1) 8 Pin+Switch
2) SMT Type (Without Post)
3) DIM: 15.20L * 14.00W * 1.85H mm
Technical characteristics
1.General characteristics
Dimensions:15.20L*14.00W*1.85H mm
Weight:Approx 0.70g
Contact principle:Friction technology
Operating position:shaft up/down/horizontal
Mounting system:SMT(without post)
Durability:5000 cycles min
2.Mechanical characteristics
Insulation material:Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contact:8pin
Contact resistance:100MΩ max
Insulation resistance:100 MΩ min
4.Solderability
Wave:not applicable
Vaporphase:215oC,30sec Max
IR reflow:260oC,10sec Max
Manual soldering:not applicable
5.Environmental characteristics
Operating humidity:10% ? +95%RH
temperature:-40oC ? +85oC
Storage humidity:10% ? +95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat:40oC,90%RH,500H
Salt-mist:35oC,5%Nacl,48H
