Home > Products > TF card connector > SIM+TF card connector

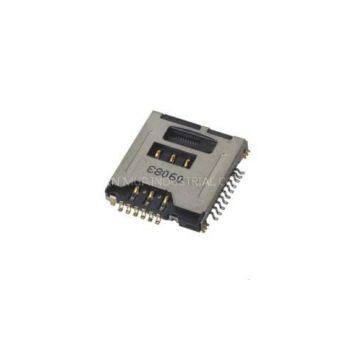

SIM+TF card connector
- 20000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | MUP | Place of Origin | China | |
| Model Number | MUP-M618 |
Product Description
1.SIM+TF card connector
2.SMT type(SIM 6pin+TF 8pin)
3 Push type
4.RoHs compliant
5.Used:Mobile, USB card reader
SIM+TF card connector
1)SIM 6 Pin TF 8pin
2) SMT Type (SIM 6Pin+TF 8pin)
3)DIM 17.40L*16.50W*2.70Hmm
Technical characteristics
1.General characteristics
Dimensions: 17.40L*16.50W*2.70H mm
Weight:Approx: 1.20±0.2g
Contact principle: Friction technology
Operating position: shaft up/down/horizontal
Mounting system: SMT(without post)
Durability: 5000 cycles min
2.Mechanical characteristics
Insulation material: Thermoplastic,UL 94V-0
3.Electrical characteristics
Number of contact: 8pin SIM+8Pin TF
Contact resistance: 50MΩ typical,100MΩ max
Insulation resistance: >1000 MΩ/500V DC
4.Solderability
Wave: not applicable
Vaporphase: 215oC,30sec Max
IR reflow: 260oC,10sec Max
Manual soldering: 360oC,3sec Max
5.Environmental characteristics
Operating temperature: -25oC ? +70oC
Operating humidity: 10% ? +95%RH
temperature: -40oC ? +85oC
Storage humidity: 10% ? +95%RH
Thermal shock: -40oC+85oC,5cycles
Damp Heat: 40oC,90%RH,500H
Salt-mist: 35oC,5%Nacl,48H
