500m Reach 4.25Gbps 850nm VCSEL LD SFP Optical Transceiver
- T/T L/C D/P D/A
- 7 days
You May Like
-
1310nm FP(LED) Laser 155Mbps SFP Optical Transceiver 2km Reach With MMF
-
20km Transmission 1310nm LD FP 155Mbps SFP Optical Transceiver
-
55Mbps 1310nm FP LD -34dBm RX Sens SFP Optical Transceiver For 40km Transmission
-
20km Transmission 1.25 Gbps SFP Optical Transceiver FS-1310-1100
-
40km Transmission Distance 1310nm DFB With SMF 1.25 Gbps SFP Optical Transceiver
-
2.488 Gbps 20km Transmission Distance 1310nm LD DFB SFP Optical Transceiver
Product Details
| Brand Name | MONV | Place of Origin | China | |
| Model Number | MONV |
Product Description
Certification:TUV/CE/FCC/RoHS/INMETRO
500m Reach 4.25Gbps 850nm VCSEL LD SFP Optical Transceiver?
FS-0850-4055
4.25Gbps SFP Optical Transceiver, 500m Reach
|

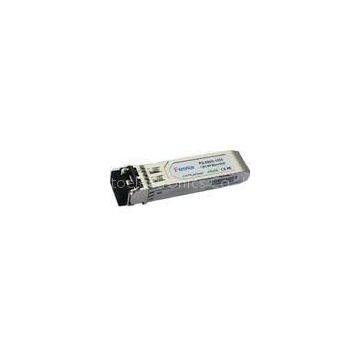

Product View |
|||
|
P/N: |
FS-0850-4055 |
Data Rate: |
4.25Gbps |
|
Distance: |
500m |
LD: |
850nm VCSEL |
|
PD: |
PIN |
TX Power: |
-9～-2.5dBm |
|
RX Sens: |
-15dBm |
Temp: |
CT |
Features
Single 3.3 V supply Up to 500m on 50/125μm MMF, 300m on 62.5/125μm MMF Supports 1.0625/2.125/4.25Gb/s Fibre Channel Operation Gigabit Ethernet compatible 850nm VCSEL laser transmitter SFP MSA SFF-8074i compliant Digital Diagnostic SFF-8472 compliant Compatible with RoHS Operating case temperature: Standard :0 to +70°C Industrial : -40 to +85°CApplications
Tri Rate 1.0625 / 2.125 / 4.25Gbp/s Fibre Channel 1.25Gbp/s 1000Base-LX Ethernet and 1000Base-LX10Description
The transceiver consists of three sections: a850nm VCSEL laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement
(MSA)1. They are compatible with Fibre Channel per FC-PI-2 Rev. 10.0.also simultaneously compatible with Gigabit Ethernet as specified in IEEE Std 802.3.
Absolute Maximum Ratings
Table1-Absolute Maximum Ratings
|
Parameter |
Symbol |
Min. |
Max. |
Units |
Notes |
|
StorageTemperature |
Tst |
-40 |
+85 |
°C |
- |
|
OperatingCaseTemperature |
Tc |
0 |
70 |
°C |
- |
|
OperatingHumidity |
RH |
5 |
90 |
％ |
Non-condensing |
|
PowerSupplyVoltage |
Vcc-Vee |
0 |
3.6 |
V |
- |
Recommended Operating Conditions
Table2-Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
OperatingCaseTemperature |
Standard |
Tc |
0 |
+70 |
°C |
|
|
Industrial |
-40 |
+85 |
°C |
|||
|
PowerSupplyVoltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
