80km Distance 1550nm DFB LD 1.25 Gbps SFP / sff-8472 Optical Transceiver
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.25 Gbps / 20km Transmission / sff-8472 SFP Optical Transceiver FS-1310-1100
-
20km Transmission 1310nm FP LD 155Mbps Sfp Msa SFP Optical Transceiver
-
1.25Gbps Data Rate 850nm VCSEL LD SFP Optical Transceiver Compatible With RoHS
-
500m Reach 4.25Gbps 125m 850nm VCSEL LD MMF SFP Optical Transceiver
-
1310nm FP(LED) Laser 2km Transmission With MMF 155Mbps SFP Optical Transceiver 2km Reach
-
1.25G Date Rate 80KM Distance Orignal Femrice SFP Duplex SFP Tranceiver
Product Details
| Brand Name | MONV | Place of Origin | China | |
| Model Number | MONV |
Product Description
Certification:TUV/CE/FCC/RoHS/INMETRO
80km Distance 1550nm DFB LD 1.25 Gbps SFP / sff-8472 Optical Transceiver
FS-1550-1800
1.25 Gbps SFP Optical Transceiver, 80km Reach
|

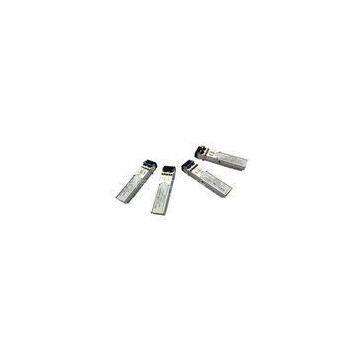

Product View |
|||
|
P/N: |
FS-1550-1800 (D) |
Data Rate: |
1.25Gbps |
|
Distance: |
80km |
LD: |
1550nm DFB |
|
PD: |
PIN |
TX Power: |
0～5dBm |
|
RX Sens: |
-23dBm |
Temp: |
CN |
Features
Data-rate of 1.25Gbps operation 1550nm DFB laser and PIN photodetector for 80km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with SONET OC-24-LR-1 Compatible with RoHS +3.3V single power supply Operating case temperature: Standard :0 to +70°C Extended : -20 to +85°CApplications
Gigabit Ethernet Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systemsDescription
The SFP transceiver sare high performance, cost effective modules supporting data - rate of 1.25Gbps and 80km transmission distance with SMF.
The transceiver consistsof three sections: a DFBl aser transmitter, a PIN photo diodeintegrated with a trans-impedance?preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceiver sare compatible with SFP Multi-Source Agreement(MSA) and SFF-8472. Forfurther
Absolute Maximum Ratings
Table1-Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
Table2-Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Operating Case Temperature |
Standard |
Tc |
0 |
+70 |
°C |
|
|
Extended |
-20 |
+85 |
°C |
|||
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
300 |
mA |
|||
|
Data Rate |
|
