2.5Gbps 40km SFP SONET OC-24-LR-1 Optical SFP Transceiver With RoHS
- T/T L/C D/P D/A
- 7 days
You May Like
-
Compliant With SFP MSA 2.488 Gps 1310nm LD DFB Transmission Distance SFP Transceiver
-
80km Distance 1550nm DFB LD 1.25 Gbps SFP / sff-8472 Optical Transceiver
-
1.25 Gbps / 20km Transmission / sff-8472 SFP Optical Transceiver FS-1310-1100
-
20km Transmission 1310nm FP LD 155Mbps Sfp Msa SFP Optical Transceiver
-
1.25Gbps Data Rate 850nm VCSEL LD SFP Optical Transceiver Compatible With RoHS
-
500m Reach 4.25Gbps 125m 850nm VCSEL LD MMF SFP Optical Transceiver
Product Details
| Brand Name | MONV | Place of Origin | China | |
| Model Number | MONV |
Product Description
Certification:TUV/CE/FCC/RoHS/INMETRO
2.5Gbps 40km SFP SONET OC-24-LR-1 Optical SFP Transceiver With RoHS?
FS-1310-2400
2.488 Gbps SFP Optical Transceiver, 40km Reach
|

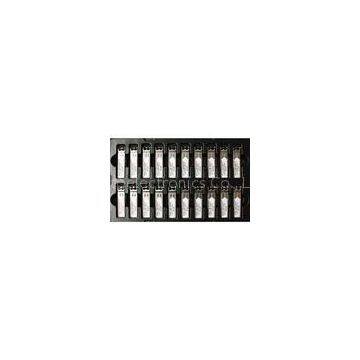

Product View |
|||
|
P/N: |
GP-3148-L4xD |
Data Rate: |
2.5Gbps |
|
Distance: |
40km |
LD: |
1310nm DFB |
|
PD: |
APD |
TX Power: |
-2～3dBm |
|
RX Sens: |
-28dBm |
Temp: |
CN |
Features
Up to 2.488Gb/s bi-directional data links 1310nm DFB laser and APD photodetector for 40km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with RoHS +3.3V single power supply Operating case temperature: Standard :0 to +70°C Extended : -20 to +85°CApplications
SDH STM-16 and SONET OC-48 system 2X Fiber Channel Switch to Switch interface Switched backplane applications Router/Server interface Other optical transmission systemsDescription
The SFP transceivers are high performance, cost effective modules supporting? dual data-rate of 2.488Gbps and 40km transmission distance with SMF.
The transceiver consists of three sections: a DFB laser transmitter, a APD photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
Table1-Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
Supply Voltage |
Vcc |
-0.5 |
4.5 |
V |
|
Storage Temperature |
Ts |
-40 |
+85 |
°C |
|
Operating Humidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
Table2-Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
Operating Case Temperature |
Standard |
Tc |
0 |
+70 |
°C |
|
|
Extended |
-20 |
+85 |
°C |
|||
|
Power Supply Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
Power Supply Current |
Icc |
300 |
mA |
|||
|
Data Rate |
