20km Transmission 1310nm FP LD 155Mbps Sfp Msa SFP Optical Transceiver
- T/T L/C D/P D/A
- 7 days
You May Like
-
1.25Gbps Data Rate 850nm VCSEL LD SFP Optical Transceiver Compatible With RoHS
-
500m Reach 4.25Gbps 125m 850nm VCSEL LD MMF SFP Optical Transceiver
-
1310nm FP(LED) Laser 2km Transmission With MMF 155Mbps SFP Optical Transceiver 2km Reach
-
1.25G Date Rate 80KM Distance Orignal Femrice SFP Duplex SFP Tranceiver
-
1.25G SFP Fiber Optic Transceiver Module with DDMI / LC Duplex Connector , 40km Link Length
-
4.0G / 10G Duplex LC Connector Fiber Optic Transceiver Module
Product Details
| Brand Name | MONV | Place of Origin | China | |
| Model Number | MONV |
Product Description
Certification:TUV/CE/FCC/RoHS/INMETRO
20km Transmission 1310nm FP LD 155Mbps Sfp Msa SFP Optical Transceiver
FS-1310-0200
155Mbps SFP Optical Transceiver, 20km Reach
|

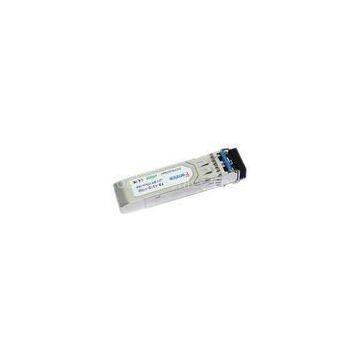

Product View |
|||
|
P/N: |
FS-1310-0200 |
Data Rate: |
155Mbps |
|
Distance: |
20KM |
LD: |
1310nm FP |
|
PD: |
PIN |
TX Power: |
-14～-8dBm |
|
RX Sens: |
-32dBm |
Temp: |
CT |
Features
Up to 155Mbps data-rate 1310nm FP laser and PIN photodetector for 20km transmission Compliant with SFP MSA and SFF-8472 with duplex LC receptacle Digital Diagnostic Monitoring: Internal Calibration or External Calibration Compatible with RoHS +3.3V single power supply Operating case temperature: Standard :0 to +70°C Industrial : -40 to +85°CApplications
SDH STM-1, S-1.1, L-1.1, L-1.2 SONET OC-3 IR1, LR1, LR2 Other optical linksDescription
The SFP transceivers are high performance, cost effective modules supporting 155Mbps data-rate and 20kmtransmission distance with SMF.
The transceiver consists of three sections: a FP laser transmitter, a PIN photodiode integrated with a trans-impedance? preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.
Absolute Maximum Ratings
Table1-Absolute Maximum Ratings
|
Parameter |
Symbol |
Min |
Max |
Unit |
|
SupplyVoltage |
Vcc |
-0.5 |
4.5 |
V |
|
StorageTemperature |
Ts |
-40 |
+85 |
°C |
|
OperatingHumidity |
- |
5 |
85 |
% |
Recommended Operating Conditions
Table2-Recommended Operating Conditions
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
|
OperatingCaseTemperature |
Standard |
Tc |
0 |
+70 |
°C |
|
|
Industrial |
-40 |
+85 |
°C |
|||
|
PowerSupplyVoltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
|
|
PowerSupplyCurrent |
Icc |
300 |
mA |
|||
|
DataRate |
155 |
Mbps |
