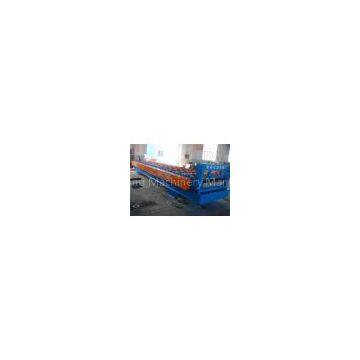

Automatic Roof Tile Forming Machine With Hydraulic Cutting By PLC

Name

Roof roll forming machine

Use

Roof/wall

color

any

Type

Tile forming machine

warranty

1 year

Certification

ISO9001:2008

Material of frame

400 H beam shape steel welding

Thickness of middle plate

14mm

Steps of roller

13

Diameter of shaft

74mm

Material of shaft

(high grade) 45# Steel, quenching and tempering treatment

Treatment of roller

hard chromize coated 0.05-0.07mm

Drive type of roll forming machine

By chain

chain

25.4mm

bearing

6210

reducer

5#

Power of main motor

5kw

voltage

380v/50hz/3 phase

Line speed

9m/min

Feeding width

1000mm

Suitable coil thickness

0.35mm-1.0mm

Motor power of hydraulic station

5kw

Oil pump of hydraulic station

Gear oil pump

Hydraulic cutting

Cutting control by PLC

Accuracy of cutting

2mm

Razor blades material

Cr12,quenching 58-62 °

Appearance size of main forming machine

7.29m(length)*1.5m (width) *1.4m (height)

Electrically controlled system

Entire controlled by PLC

PLC

DELTA

Frequency converter

DELTA

Frequency converter power

5.7KW

Encoder

RUI PU(high grade)
?

Controlling desktop

Text panel screen

Electrical part

DELIXI OR CHINT
