HD SMD1010 Digital Indoor Curved LED Screen With MBI5052 Driving Chip

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Glux		Place of Origin	China
Model Number	TVsn

Delivery Time:15-45 days (Depending on quantity)
Certification:CE ROSH

High Definition? High Precision Image Performance Curved LED Screen

Quick Detail:

1. Name:TVsn

2. Brightness :2500cd/m2

3. Module Size:500*500*50.8

4. Grey Scale: RGB 16bit

5. Protection:Indoor

6. Cabinet Material:Carbon fiber

Description:

1. Double power for back-up,double signal for insurance

2. LCD info display on real time: indicating operating time

??? Product performance and product temprature

3. High definition high precision image performance

4. Black lights ,black mask ,entire blace 1010 LED ,PWM energy saving IC

5. Lamp drive of dividing radiating ,soft and hard combined plate ,FPC+PCB

?Application:

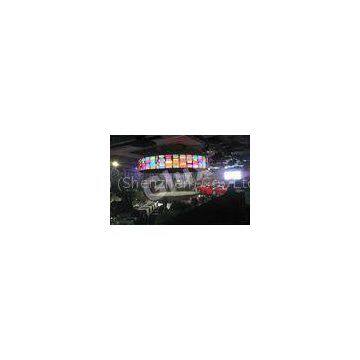

Glux TVsn Series suit for? exhibition ,science& technology museum stage ,bar , entertainment and public place.

Specifications

Glux LED Display? TVsn Series	TVsn18	TVsn24
Pixel Pitch(mm)	1.8	2.4
Pixel Density(dots/m2)	73984	43264
Brightness(cd/m2)	2500	2500
Color Temperature(after calibration)K	6500	6500
Module Size(WHD)(mm)	50050050.8	50050045
Weight(kg/Panel)	4.3	4.3
Weight(kg/m2)	17.2	17.2
LED Type	SMD1010	SMD1010
LED Chip	Epistar	Epistar
Horizontal/Vertical Viewing Angle(o)	H160o/V160o	H160o/V160o
Recommended Viewing Distance(m)	1--100	1-100
Contrast	2500:1	2500:1
Refresh Rate(Hz)	900	1100
Grey Scale(bit)	R’G’B 16bit	R’G’B 16bit
Frame Rate(Hz)	50/60	50/60
Life Time(H)	≥50000	≥50000
Protection	Indoor	Indoor
Power Supply	Dual Power Supply	Dual Power Supply
Max Power Consumption(W/M2)	1200	1200
Avr Power Consumption (W/M2)	400	200
Working Temperature	-25-60℃	-25-60℃
Working Humidity	10%-95%	10%-95%
Driving Method	1/17	1/13
Driving Chip	MBI5052	MBI5052
