P 10mm RGB 16bit Curved LED Screen Moving Message LED Sign For Big Plaza

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Glux		Place of Origin	China
Model Number	BAtn

Product Description

Delivery Time:15-45 days (Depending on quantity)
Certification:CE ROSH UL

Adjustable Carbon Fiber Material Suitting For Mounting Project Curved LED Screen
?

Quick Detail:
?
1. Name:BAtn
2. Module Size:1000*500*45mm
3. Brightness:5000cd/m2
4. Module Size:1000*500*45mm
5. Contrast:2000:1
6. Grey Scale:RGB 16bit
?

?
Description:

1. Carbon fiber construction for an ultra light ,thin and aerodynamic structure.
2. Wind Resistant and weathproof- ideal for large scale setups
3. Glux angled edge structure for max 90 degree curved assembly =compatible with all other Glux LED Screens
4. Glux fast-assembly mechanism=compatible with all other Glux LED Screens
5. Invisible cable management
6. Grayscale &&Pixel by Pixel corrections ensures the highest image quality.
7. Module measurements:1.0*0.5m
?

?
Applications:
?

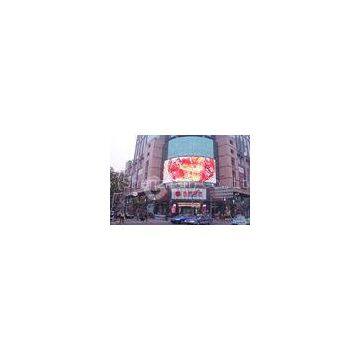

Glux BAtn series suits for outdoor stages,outdoor advertisings,and so on.
?

Specifications:
?

Glux LED Display? BAtn Series	BAtn 10C	BAtn 15C	BAtn 20C
Pixel Pitch(mm)	10.4	15.6	20.8
Pixel Density(dots/m2)	9216	4096	2304
Brightness(cd/m2)	5000	5000	5000
Color Temperature(after calibration)K	6500	6500	6500
Module Size(WHD)(mm)	100050045	100050045	100050045
Weight(kg/Panel)	4.7	4.7	4.7
Weight(kg/m2)	9.4	9.4	9.4
LED Type	3535	3535	3535
LED Chip	Epistar	Epistar	Epistar
Horizontal/Vertical Viewing Angle(o)	H160o/V160o	H160o/V160o	H160o/V160o
Recommended Viewing Distance(m)	10-200	15-200	20-200
Contrast	2000:1	2000:1	2000:1
Refresh Rate(Hz)	1200	5000	8000
Grey Scale(bit)	R’G’B 16bit	R’G’B 16bit	R’G’B 16bit
Frame Rate(Hz)	50/60	50/60	50/60
Life Time(H)	≥75000	≥75000	≥75000
Protection	IP65	IP65	IP65
Power Supply	Dual Power Supply	Dual Power Supply	Dual Power Supply
