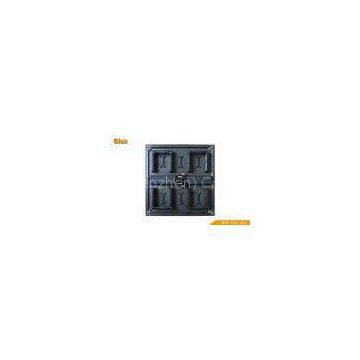

SMD1010 Light Weight Large Advertising LED Screens With Wide View Angle

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	GLUX		Place of Origin	China
Model Number	TVsn

Delivery Time:15-45days
Certification:CE ROSH

Light weight, Modern design,full color advertising LED screens

Quick Detail:

?1. Name:TVsn?

?2. Color:Black

?3. ?Power Consumption:300W/PCS

?4. ?Feature:Indoor LED display panel,super light and thin with best image quality .

?5.? Certificate:CE ROSH.

Description:

???1. ?Modern design, light weight and suitable for large set ups.

2.? Constructed with carbon fiber, resulting in a super thin structure, suitable for 90 Degree installation

3.? ?Vertical hanging installation.??

4.? Excellent picture quality provided by our advanced picture correction software technology.

5.? Glux own renowned Fast Assembly series for quick and easy installation, dismantling and repairing.

6.? Self-test function for checking individual panels without needing a signal connection.

7.? Modular design for convenient and quick maintenance.

Specifications:

Glux LED Display TVsn Series	TVsn18	TVsn24
Pixel Pitch(mm)	1.8	2.4
Pixel Density(dots/m2)	73984	43264
Brightness(cd/m2)	2500	2500
Color Temperature(after calibration)K	6500	6500
Module Size(WHD)(mm)	50050050.8	50050045
Weight(kg/Panel)	4.3	4.3
Weight(kg/m2)	17.2	17.2
LED Type	SMD1010	SMD1010
LED Chip	Epistar	Epistar
Horizontal/Vertical Viewing Angle(o)	H160o/V160o	H160o/V160o
Recommended Viewing Distance(m)	1--100	1-100
Contrast	2500:1	2500:1
Refresh Rate(Hz)	900	1100
Grey Scale(bit)	R’G’B 16bit	R’G’B 16bit
Frame Rate(Hz)	50/60	50/60
Life Time(H)	≥50000	≥50000
Protection	Indoor	Indoor
Power Supply	Dual Power Supply	Dual Power Supply
Max Power Consumption(W/M2)	1200	1200
Avr Power Consumption (W/M2)	400	200
Working Temperature	-25-60℃	-25-60℃
Working Humidity	10%-95%	10%-95%
Driving Method	1/17	1/13
Driving Chip	MBI5052
