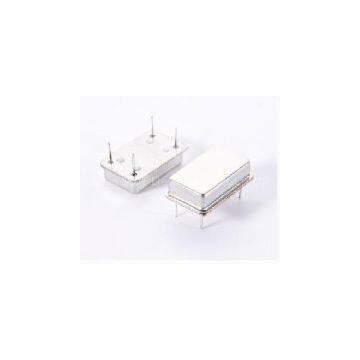

Full size (14PIN) oscillator 96.000MHz

FEATURE

● All metal welded package.

● Broad frequency range from 0.25Mhz to 180MHz.

● Built-in C-MOS IC with tri-state function.

● 5V and 3.3V supply model available.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● Ideally suited designed for use in monitor,computers,wireless lan card & wire

lan card,CD-PLAYER,HDD,Work station.

●Electrical Specifications

Holder Type:FULL SIZE (14PIN) OSCILLATOR

Frequency Range:1.000 Mhz to 100.000 M

Frequency Stability:±25ppm to ±50ppm

Supply Voltage:5.0V or 3.3V ±10％

Operating Temperature Range:-10℃ - +60℃ to -40℃ - +85℃

Storage Temperature Range:-40℃ - +85℃/-55℃ - +125℃

Symmetry（Duty Cycle）:40/60 Standard

Output Load 5.0 V:10 TTL or 15pF Hcmos

Output Load 3.3 V:10 TTL or 15pF Hcmos

Current Consumption 5.0V（15pf only）:1.000Mhz -                                       35.999Mhz=25mA max

                          36.000Mhz - 69.999Mhz=60mA max

                          70.000Mhz - 100.000Mhz=80mA max

Current Consumption 3.3V（15pf only）:1.000Mhz -                                       35.999Mhz=20mA max

                         36.000Mhz - 69.999Mhz=40mA max

                          70.000Mhz - 100.000Mhz=60mA max

Rise/Fall Time:5 nS max
