- Shenzhen SCTF Electronics Co.,Ltd
-
Shenzhen, Guangdong, China
- Main products: quartz crystal resonator , quartz crystal oscillator
Home > Products > New product > 6*3.5 SMD Quartz Crystal Resonator 10.000MHz

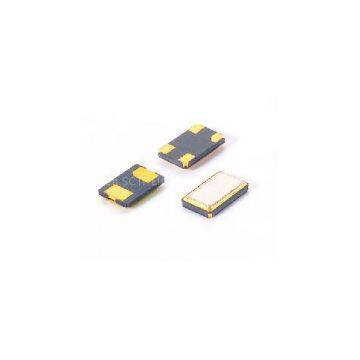

6*3.5 SMD Quartz Crystal Resonator 10.000MHz
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SCTF | Place of Origin | China | |
| Model Number | 6*3.5 SMD 10.000MHz |
Product Description
FEATURE
● Rugged AT-cut crystal construction.
● Rugged construction and excellent mechanical shoch resistance.
● Extremely compact SMD package.
● High precision characteristic covering up to high frequency range
● Automatic mounting
● Embossed taping specification
● Suitable for solder reflow
● Pb-free and RoHS/Green compliant.
APPLICATIONS
● Ideally suited designed for disc drives, PCMCIA, PCs and hand-held electronic
products.
●Electrical Specifications
Holder Type:6x3.5mm Ceramic Surface Mount
Frequency Range:8.000 to 150.0000 MHz
Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm
Frequency Drift:±10ppm to ±30ppm※(See Notes)
Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃
Storage Temperature Range:-40℃ - +85℃ /-55℃ - +125℃
Aging（25℃）:±3ppm/ year max.
Shunt Capacitance（C0）:5pF max.
Drive Level:10μW (300μW max.)
Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C 100V
Load Capacitance（CL）:Suggested by customer
※Notes:±10，±20，±30ppm (-20℃ to +70℃)
±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
