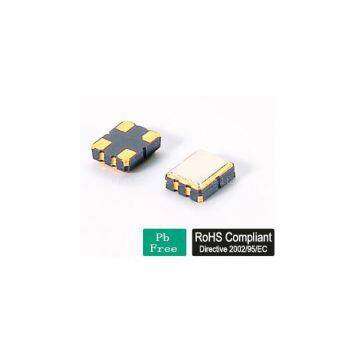

OSC3.2*2.5 Qaurtz Crystal Oscillator

FEATURE

● Tight frequence tolerance.

● CMOS compatible logic levels.

● Pin-compatible with standard 3.2×2.5mm packages.

● Designed for standard reflow and washing techniques.

● Low power standby mode.

● Available on tape & reel,1000pcs per reel.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● Ideally suited designed for use in Ethernet, network adapter cards,hard disk

devices,blue tooth,PCMCIA Cards, Palmtop Computer, Portable Applications.

●Electrical Specifications

Holder Type:3.2x2.5mm SMD OSCILLATOR

Frequency Range:32.768KHz, 1.000 Mhz to 125.000 MHz

Frequency Stability:±20ppm to ±50ppm

Supply Voltage:5.0V or 3.3V ±10％※(See Notes)

Operating Temperature Range:-10℃ - +60℃ to -40℃ - +85℃

Storage Temperature Range:-40℃ - +85℃/-55℃ - +125℃

Symmetry（Duty Cycle）:Symmetry（Duty Cycle）

Output Load:15pF Hcmos or 10 TTL

Current Consumption（15pf only）:1.000Mhz - 49.999Mhz=25mA max

(5.0V):50.000Mhz - 125.000Mhz=80mA max

Current Consumption（15pf only）:1.000Mhz - 49.999Mhz=20mA max

( 1.8V 2.5V 2.85V 3.3V):50.000Mhz - 125.000Mhz=60mA max

Rise/Fall Time:5 nS max

※Notes:The supply voltage 1.8V,2.5V,2.85V also can be made by customer.
