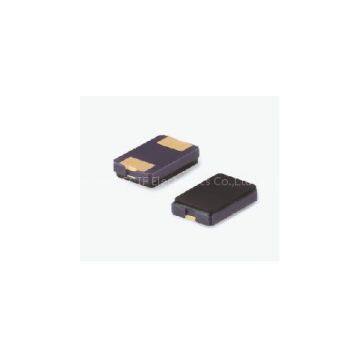

5*3.2 Crystal Resonator
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | SCTF | Place of Origin | China | |
| Model Number | SMD5*3.2 |
Product Description
FEATURE
● Rugged AT-cut crystal construction.
● Miniature 5.0×3.2mm ceramic package.
● Suitable for Reflow soldering.
● Pb-free and RoHS/Green compliant.
APPLICATIONS
● Ideally suited designed for HDD,PCMCIA Cards,Portable Hand-held PCs,
Notebook PC,Wireless LAN,Portable Multimedia Davices,USB Dongle.
●Electrical Specifications
Holder Type:5.0x3.2mm Glass Surface Mount
Frequency Range:8.000 to 150.0000 MHz
Frequency Tolerance（△F）（at25℃）:±10ppm to ±30ppm
Frequency Drift:±10ppm to ±30ppm※(See Notes)
Operating Temperature Range:-20℃ - +70℃ / -40℃ - +85℃
Storage Temperature Range:-40℃ - +85℃ /-55℃ - +125℃
Aging（25℃）:±3ppm/ year max.
Shunt Capacitance（C0）:5pF max.
Drive Level:10μW (300μW max.)
Insulaton Resistance（Rs）:500 Megaohms Minimum at D.C 100V
Load Capacitance（CL）:Suggested by customer
※Notes:±10，±20，±30ppm (-20℃ to +70℃)
±20，±30，±50ppm (-40℃ to +85℃) or depends on customer
