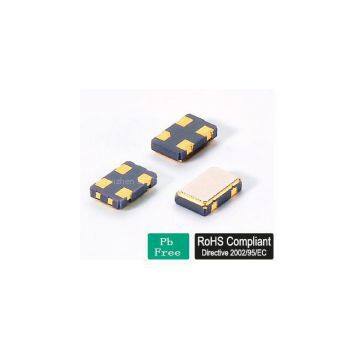

60MHz Osc5*3.2 Quartz Crystal Oscillator

FEATURE

● Tight frequence tolerance.

● Pin-compatible with standard 5.0×3.2mm packages.

● Low power standby mode.

● surface mounting and automatically loaded.

● Reflow solder is possible.

● Lower noise and current with reduced power consumption.

● Built-in C-MOS IC with tri-state function.

● Pb-free and RoHS/Green compliant.

APPLICATIONS

● Ideally suited designed for use in Ethernet, fiber channel,PCs, NB,

PCMCIA Cards, Palmtop Computer, Portable Applications.

●Electrical Specifications

Holder Type:5x3.2mm SMD OSCILLATOR

Frequency Range:32.768KHz, 1.000 Mhz to 125.000 MHz

Frequency Stability:±20ppm to ±50ppm

Supply Voltage:5.0V or 3.3V ±10％※(See Notes)

Operating Temperature Range：-10℃ - +60℃ to -40℃ - +85℃

Storage Temperature Range：-40℃ - +85℃/-55℃ - +125℃

Symmetry（Duty Cycle）：40/60 Standard

Output Load：10 TTL or 15pF Hcmos

Current Consumption（15pf only）：Current Consumption（15pf only）

(5.0V)：36.000Mhz - 69.999Mhz=60mA max

       70.000Mhz - 100.000Mhz=80mA max

Current Consumption（15pf only）：1.000Mhz - 35.999Mhz=20mA max

( 1.8V 2.5V 2.85V 3.3V)：36.000Mhz - 69.999Mhz=40mA max

                        70.000Mhz - 125.000Mhz=60mA max

Rise/Fall Time：5 nS max

※Notes:The supply voltage 1.8V,2.5V,2.85V also can be made by customer.
