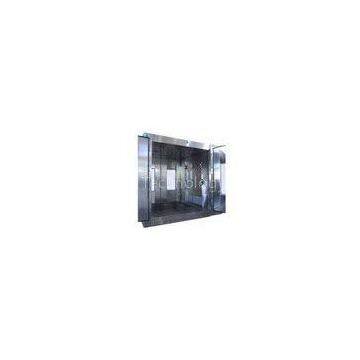

Stainless Steel 304 Air Shower Pass Box With Roll Conveyor System

Stainless Steel 304 Air Shower Pass Box With Roll Conveyor System

?
Quickly detail

?Extenal size : 1300x900x1400mm?

?Internal Size: 900x900x900mm ?

?Filtration step : 2 step?

HEPA filter efficiency: 99.999%@0.3um?

?SUS nozzle: 16pcs

?Blower way: two or three size blower?
?

?Air speed :>25m/s?

?Power: 380V/50HZ
?
?
Introduction:
?
Built-in air shower significantly reduces surface contamination on materials entering or exiting the controlled environment, material entering or exiting the controlled environment by high velocity HEPA filtered air jets with velocities of 20-25m/s. contaminated air is then drawn through the base within the unit, filtered and recirculated.
?
?
Applications:
?
It is widely used in the clean environment, such as micro-electronic, laboratory, national defense, precise instrument, bio-pharmaceuticals, photo-electric, aseptic packaging field and so on.
?
?
operating features:
?
1: The outside cabinet constructed of cold rolled steel with an abrasion resistance oven-baked powder coated finish or stainless steel material.
2: the inside material is stainless steel for prevent scratches and keep inside in flat and neat.
3: the door in two side can be machinery or electronic interlock maintains clean room integrity by preventing both doors from being opened at the same time.
4: two step filtration, the HEPA filter is 99.995% @ 0.3um, the pre-filter is from G1 to G3.
5: the air velocity more than 20m/s
6: according to production process requirement, it can install the UV light, ozone light or conveyor belt and so on
?
?
Technical Parameter:

Customer’s design is available.

?
?
Factory test:?
?
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
?
?
Factory test include:
?
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)?
?
?
Warranty:
?
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.?
?
?
Consumable parts illustration:
?
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
?
2: HEPA filter: each one should be replacement in each half and one years.?
?
?
