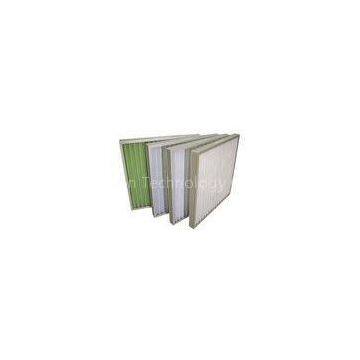

F6 Z Line Secondary Air Filter With Aluminum Frame , Low Resistance
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Aluminum / Plastic Frame F8 Secondary Air Filter with Non Woven Media
-
F5 / F6 / F7 V Bank Filters Air Conditioning Filters 400pa - 600pa
-
Reusable Multi - Pocket Secondary Air Filter Synthetic Fiber Glass Fiber 592x592x600mm
-
F8 / F9 Mini Pleat Medium Pocket Air Filter With Big Air Volume
-
Secondary Fine Dust Pleated Pocket Air Filters For Industry AHU
-
4 V Rigid Cell Secondary Air Filter For Central Ventilation System
Product Details
| Brand Name | K-LING | Place of Origin | China | |
| Model Number | KEL-BF |
Product Description
Certification:EN799
?F6 Secondary Z Line Air Filter With Aluminum Frame
Quickly detail
?
Media:? Non-woven Media
Frame: Aluminum /Plastic ?or cardboard?
Filter efficiency: F5,F6.F7,F8,F9
Filter size: 592x592x46
Pocket : 4-10 pcs?
Resistance:<30-50pa
Performance:
low resistance, big air volume, long time use life, Big media area. Solid structure, Big dust hold capacity
Applications area:
?z-line air filter widely use for primary filtration HVAC system in civil and industry
It use for primary or medium filtration in central air conditional system.?
Characteristics:
1: The z line air filter made of synthetics fiber and non-woven media,
2: this air filter can change the media by user so that reduce the cost.
3: solid frame and brackets increase the filter stability and endure.
4: This filter can choose the flange or without flange.
5: Gasket for your option so that stop the air leaking.
6: the z line air filter efficiency range: F5,F6, F7, F8, F9,
45%-95%@0.5um (EN779).
Dimension and parameter:
|
Dimension (W*H*D) ?(mm) |
Rate air flow (m3/h) |
Media area (m2) |
dust containing capacity |
Initial Resistance (pa) |
Finally resistance (pa) |
Efficiency |
|
592x592x46 |
2600 |
0.97 |
≈110 |
<25-45pa |
100-200pa |
G4 |
|
≈130 |
||||||
|
≈160 |
||||||
|
≈200 |
||||||
|
592x490x46 |
2200 |
0.81 |
≈98 |
|||
|
≈110 |
||||||
|
≈130 |
||||||
|
≈160 |
||||||
|
5925x287x46 |
1300 |
0.48 |
≈50 |
|||
|
≈60 |
||||||
|
≈80 |
||||||
|
≈100 |
||||||
|
490x592x46 |
2300 |
0.86 |
≈100 |
|||
|
≈110 |
||||||
|
≈140 |
||||||
|
≈170 |
||||||
|
490x490x46 |
1900 |
0.71 |
≈80 |
|||
|
≈95 |
||||||
|
≈115 |
||||||
|
≈145 |
||||||
|
287x592x46 |
1400 |
0.52 |
≈60 |
|||
|
≈70 |
||||||
|
≈80 |
||||||
|
≈100 |
Customer size is available.
Material and operation conditions:
?
|
Media |
? ?Synthetic fiber Media |
|
Plastic frame ? |
21mm |
|
Aluminum Frame |
17-50mm |
|
Frame |
Plastic /Galvanized/Aluminum/SUS frame |
