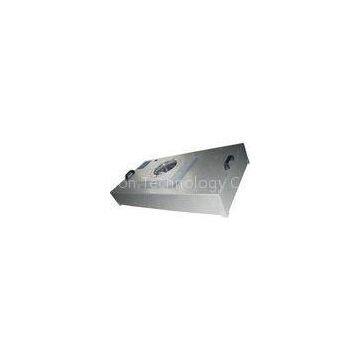

FFU Class 10000 Cleanroom Fan Filter Units With EMB Centrifugal Fan

?Two Step Filtration Fan Filter Units With EMB Centrifugal Fan ( FFU )

?
Quicky detail
?
Internal Size: 1175x615x615mm?
Purification rank: Class100-10000
HEPA filter efficiency:99.99%- 99.999%@0.3um
HEPA filter size : 1170x610x69
Air speed :0.3-0.6m/s
Power: 220V/50HZ ,110v/60HZ
?
?
Introduction:
?
It is designed to provide filtered laminar air flow over a specific area, the unit integrates a high efficiency fan together with a HEPA/ULPA Filter. the FFU in contaminated air from the top of the module and exhausts filtered clean air vertically in a unidirectional air stream at its base.
?
?
Applications:
?
conventional clean room construction, soft wall or hard wall clean room,
?
?
Operating features:
?

1. high-efficient backward curved centrifugal fans?

?
?
?
Illustration:
?
1: Plastic Handle? 2: Fan? 3: HEPA filter??? 4:Pre-filter? 5:Control panel? 6:Power cable
?
?
Technical Parameter:

customer’s design is available.

?
?
Factory test:?
?
All of equipment is individually factory tested for safety and performance in accordance with international Standards. Each unit is shipped with a documentation outlining the tests undertaken and the units individual results for each unit.
?
?
Factory test include:
?
-- functional test and visual inspection
-- electrical safety tests
-- air velocity testing
-- purification rank test (if need)?
?
?
Warranty:
?
Our equipment is warranty for 1 year excluding consumable parts and accessories.
All equipment is shipped with a comprehensive use’s manual complete with a report documenting all test procedures.
Additional IO/OQ/GMP document is available upon request.
Contact our sales representative for specific warranty details or document request.?
?
?
Consumable parts illustration:
?
1: Pre-filter: each one should be replacement in each 6 month, but it can refresh no more three times.
?
2: HEPA filt
