Home > Products > Softwall Clean Room > Biological Lab Modular Softwall Clean Room Class 10000 , 99.999%@0.3um

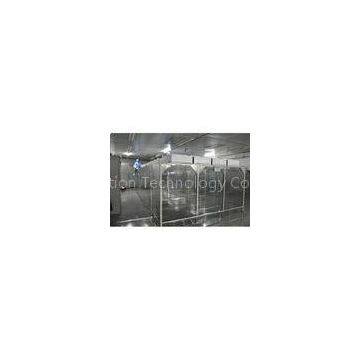

Biological Lab Modular Softwall Clean Room Class 10000 , 99.999%@0.3um

FOB Price

Negotiable / Set

1 Set(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	K-LING		Place of Origin	China
Model Number	KEL-FLB2500

Product Description

Delivery Time:8 WORKING DAYS
Certification:CE,

Class 10000 Softwall Cleanroom Modular For Pharmaceuticals Industry

?
Quickly detail ?

?External size : 2500x2500x2596mm
?Internal Size: 2400x2400x2205mm?
?Purification rank: Class10000
?HEPA filter efficiency: 99.999%@0.3um
?Laminar flow: vertical
?Air speed :0.3-0.6m/s
?Power: 220V/50HZ
?
?
Introduction:

laminar air flow booth modular interior cleanliness can be reached100-100000class level,?in order to reduce structural costs of clean shed, YANING changed the?traditional concept of clean shed design, take a modular integrated design?concept , this structure has a variety of separate clean area, for some areas

?of general clean class level clean room that required high clean class level?do local creation to reduce costs, thus making the workers and equipment,?products effectively isolated, can minimize the pollution, thereby increasing?the rate of qualified products.

?
?
Applications:
?
1: Food industry,

2: aerospace,

?3:life sciences,

?4:biotechnology,

?5: medical devices,

?6:plastic injection module,

?7: electronics assembly

?8:hospital pharmacy ? ? ??

?
?
Operating features
?

moveable laminar flow clean booth Modular, easy-to-clean rigid design with minimal joints.

Single, Two-Stage or Three-Stage HEPA/ULPA filtration can be accommodated.

Removable bulkhead panels enable access to fine dust filter for service from inside the booth.

Re-circulatory Airflow or Single Pass Airflow if solvent or hazardous fumes are present in the process (may also require explosion proof electricals).

Cooling Coils can be fitted to offset heat gains in re-circulatory airflow systems.

HEPA/ULPA gel-seal downflow filters are replaceable from within the boot. Gel-seal is more reliable than conventional gasketed seals.

Voltage-compensating blower(s) ensure stable airflow

Magnehelic gauges provide convenient and reliable means for monitoring booth airflow.

Booths ship knocked-down for site assembly.

Compact ceiling and rear plenums maximize usable work area while minimizing floor space.

Comprehensive factory and site acceptance tests include: filter integrity, particle count (air cleanliness), downflow velocity and uniformity, exhaust velocity/volume, containment zone verification, noise level, light intensity, temperature rise and electrical safety

?
Illustration:
?
1:? The frame is steel cube with milk powder coated.
2:? M support leg?
3:? The wall made from clarity synthetic glass.
4:? FFU control box.
5:? FFU with HEPA filter and pre-filter
6:? Purification lamp
7:? PVC strip curtain
8:? Purification rank class100-10000 (FS209E Stander)
?
?
Technical Parameter:
?

MODEL	KEL-LFB2500
Ex size (mm) (WDH)	2500X2500X2596mm
In size (mm)	2400x2400x2205mm
Purification rank	Class10000(FS209E USA)
HEPA filter	Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filter	Efficiency : 85% @ 5um
Control system	?PC control system / promised speed by control box?
Pressure Gauge	?American Dywer pressure
Noise	<50-55 dB? (test point distance is 1m)
?Air velocity (m3/h)	????0.2-0.5m/s Adjustable?? (test point distance is 30cm)
Frame material	?stainless steel/steel with power coated/Cast aluminum profile
Wall frame	Tempered glass / PVC anti-static curtain (option)
Fan	EBM Fan /Taiwan fan/ Domestic fan (option)
Power suppler	???
