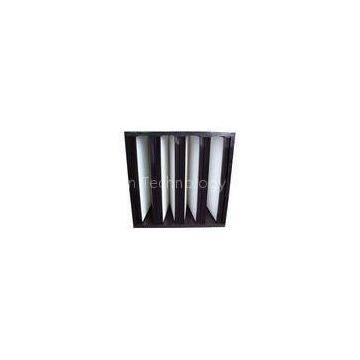

F7 V Cell Industrial Air Filters Fiberglass Air Filter With ABS Plastic Frame

F7 Secondary V Cell Air Filter With ABS Plastic Frame?

?
Quickly Detail
?
Media:? Glass fibre media?
Frame: ABS Plastic
Filter efficiency: F7
Filter size: 592x592x292mm
Packs : 3V ?
Resistance:<30-50pa
?

Introduction :

the Secondary V cell air filter has good filtration effect?in removing small diameter’s dust. Its efficiency can reach?65%-95% 0.3um. This filter’s air volume can be 4200m3/h and?suitable for big air volume’s need. It can reduce the installation?area and time compared with other same size’s Secondary filter.?Choosing big Filtration area ensures low resistance at the same?time save charge. ??

Applications area:

?Secondary V Cell air filter widely use for medium filtration in industry and commercial field.

?That is medium filter in clean room HVAC system.???

Characteristics:

1: The Secondary V Cell air filter use for filter more than 0.5um particles and dust in HVAC air conditional system ,that particular design for HVAC project at low resistance with big air volume.

?2: The filter media adopt the pp media or ultra-thin glass fiber with high dust holding capacity , the hot-melt glue spacing each pleats in regular so that achieve high dust volume , all of the media area can be used in completely .

?3: The polypropylene plastic frame can be Incineration when use out .

?4: the filter with flange can replace by pocket air filter.

?The sealant around the media so that the air filter without any air leaking

5: the secondary V cell air filter efficiency range: F6,F7, F8,F9(EN779).

Dimension and parameter:
