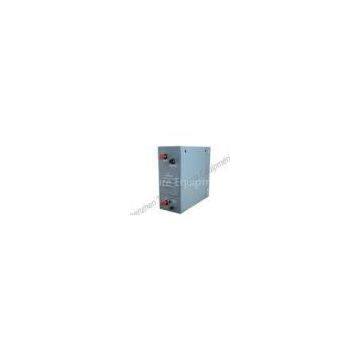

7.5kw Electric Steam Generator , Automatic Steam Generator with pressure relief valve

Brand Name	KSA		Place of Origin	China
Model Number	KSA-E75

Delivery Time:1-3 workdays
Certification:CE

prevent water scale KSA-E70 steam generators 7.5kw/220v-230v/400v ?for steam bath with automatic flushing? ???

Quick Detail:

Type: Wet Steam Sauna control panel: digital and optional Power output: 7.5kw voltage: 220V/400V Main Material: stainless steel tank, galvanizing and powder coated shell Color: grey green Current:31.8A/11.4A phase: 1/3 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off Shape: Cuboid Size: 475*185*450mm Room volume(cubic meter): 5.5~8.5 Usage: steam sauna room working time: 1~60 minutes or long time Heating: heat elements Power source: Electric Time Setting: 1-60mins Temperature range to control: 95 F degree~131 F degree Temperature range to show on control panel: 43 F degree ~140 F degree

7.5kw Automatic Sauna Steam Generator with pressure relief valve

Our KSA-E steam generator mainly have below functions:

Classic shape Intelligent to indicate fault with the code. When controller shows CH can working for long It Can pause at working Intelligent to save two sets of temperature, can individual set time by memory Intelligent to heat by segment, fill water with steam, automatic to turn off , a self flushing cycle ,with pressure to drain. Light can be connected to controller, water inflow to magnetize and filtrate etc.

Description:

How to install them?

Water inlet:? First connect the water magnetizer (if applicable) to the water inlet solenoid valve. Then please use a 1/2’’ flexible stainless steel hose to connect the other side of the water magnetizer and the water supply pipeline. Do not connect to metal water supply pipeline directly which may damage the water inlet valve. Only use cold water supply.

Steam outlet:? Use no less than 1/2’’ copper pipe to connect the steam head and the steam outlet pipe of the generator. The pipe should be less than 3 meters long and minimize the number of elbows, otherwise heat isolating methods should be implemented.

Steam head:? The steam head should be about 300mm from the ground and at least 150mm from customer seats. Please apply silicone glue on the steam pipe nipple and back of the steam head, and then screw the steam head on to the steam pipe nipple. Please refer to part A in figure 7, the Aromatherapy reservoir should face upwards.

Drain pipe: Please use 1/2’’ copper pipe to connect the drain outlet and the drain pipeline of the house. Similarly, use 1/2’’ copper pipe to connect the safety valve and the drain pipeline of the house. The drain pipeline should be installed with small angle so as to help residual water in the steam generator flow to the drain pipe.

More detail please contact us at info@hktolo.com

Applications:

For steam bath, Turkish bath and public sauna or hotel.

Specifications:

Pressure relief valve KSA-E75 steam generators 7.0kw/220v-230v/400v ?for Turkish bath with automatic flushing

Control panel with Digital display Control panel used the advanced inducing technology Controls sauna temperature 35 degree to 55 degrees Controls sauna time 1 minute to 60 minutes or long time Intelligent to heat by segment Intelligent to fill water with steam Intelligent to do a self flushing cycle Light can be connected to controller Intelligent to indicate fault with the code Can pause at working To show CH can working for long Intelligent to save two sets of temperature, can individual set time by memory Automatically shuts down when water level is too low Temperature high limit switch Waterproof grade: IPX5 Auto protection: over-heat protect, boil dry protect, pressure balancing valve, leakage protect, lack of water protect and the others Auto function: auto water inlet , auto drain, auto flushing, auto power off

We will provide some spare parts to our customer as replacement.

Technical Data

Model

Power KW

Room volume (m3)

Power requirements?????????? 50/60Hz

Current?(A)

Power??????? wire (Copper)????????? N*mm2

Dimensions ?CM

Packing dimensions CM

Gross weight
